ML51UC0AE

Introduction:
NuMicro® ML51UC0AE is a value-packed microcontroller ideal for numerous applications in the IoT and smart appliance sector. Developed by Nuvoton, this microcontroller is designed with power efficiency at its core and is capable of running up to 24MHz with less than 80µA/MHz in normal mode and a power-down current below 1uA. Operating across a wide voltage range from 1.8V to 5.5V and a temperature range between -40 ℃ to 105 ℃, it truly shows versatility.

Function & Applications:
Built on the sturdy and dependable platform of 1T 8051 core, the NuMicro® ML51UC0AE excels in function and compatibility. It provides an alternative low-power run mode at selectable low-frequency clock sources by 38.4kHz internal clock or external 32.768kHz crystal. It features powerful attributes such as 12-bit 500k SPS ADC, up to 2 channels of comparators, and a PDMA controller. The rich peripherals include 2 sets each of UART, ISO7816 interfaces, I²C, and SPI. This microcontroller is designed with applications like smoke detectors, IoT sensor nodes, smart appliances, and data loggers in mind.

Performance Parameters:
The NuMicro® ML51UC0AE showcases exceptional technical performance. It houses flash size ranging from 16KB to 64KB, SRAM size from 1KB to 4KB and is equipped with up to 24 GPIO, timers, and watchdog timers. Moreover, it houses a 32 KB Flash memory for program code, and 4 KB Flash for ISP. The watchful temperature range, wide voltage range, and options for low-power run modes further account for its high performance.

Package Types, Interface & Pin Configuration:

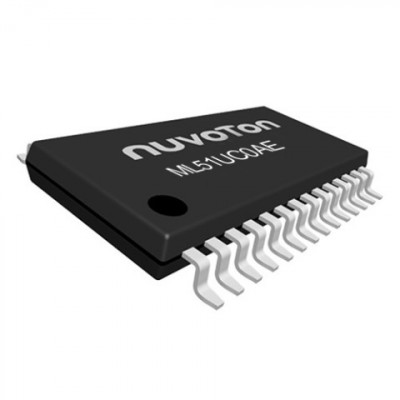

The NuMicro® ML51UC0AE comes in the packages to SOP28. These ensure downward pin-compatible making system design and change of parts easier. Additionally, it supports diverse interfaces such as UART, SPI, I²C, etc.

Reliability & Lifespan:
The ML51UC0AE assures a high level of reliability due to the low power consumption and a competent, robust design. The CMOS, based on a 1T 8051 core, adds to its reliability. The wide-ranging operating conditions concerning temperature and voltage enhance the dependability of this microcontroller.

Standards & Certifications:
The ML51UC0AE model complies with the stipulations and certifications needed for such a microcontroller. However, the specific standards and certifications may vary depending on regional and product-specific requirements.

Application Cases & Reference Designs:
The ML51UC0AE finds use in several real-world applications that require efficient power usage and functionality. It's exceptionally suitable for Wearable, battery-powered devices, home appliances, IoT devices, auto-alarm systems, battery management systems, and remote controllers.
