NuTiny-ML51EB

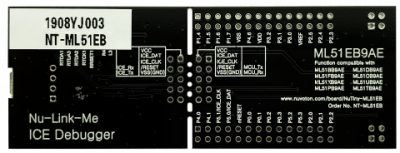

The NuTiny-ML51EB development board consists of two parts, a ML51EB9AE platform and an on-board Nu-Link-Me debugger and programmer. The NuTiny- ML51EB allows users to quickly develop and easily program and debug application.

The NuTiny- ML51EB offers ML51EB9AE full pins extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications.

The Nu-Link-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. Additionally, the Nu-Link-Me provides virtual COM port (VCOM) function to print out messages on PC.

• Board Feature
  NuMicro®  ML51EB9AE  used as main microcontroller with function downward compatible with ML51UB9AE, ML51XB9AE, ML51OB9AE, ML51FB9AE, ML51DB9AE, ML51BB9AE.
  ML51EB9AE full pins extension connectors
  Fixable board power supply
  External VDD power connector
  ICE USB connector on Nu-Link-Me
  On-board Nu-Link2-Me debugger and programmer:
  On-line program and debug through SWD interface
  Virtual COM port function
