NuMaker-ML51SD

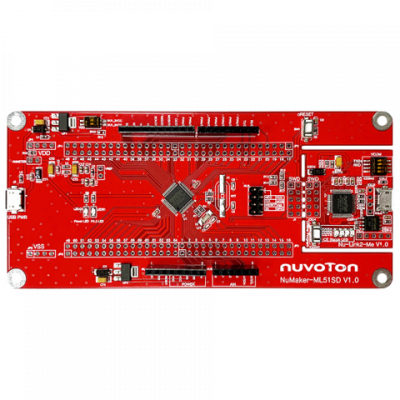

The NuMaker-ML51SD is a development board for Nuvoton NuMicro® ML51 series microcontrollers. The NuMaker ML51SD consists of two parts: an ML51 platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-ML51SD is designed for project evaluation, prototype development and validation with power consumption monitoring function.

The ML51 platform is based on NuMicro® ML51SD1AE. For the development flexibility, the ML51 platform provides the extension connectors of ML51SD1AE, the Arduino UNO compatible headers and able to adopt multiple power supply. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.

In addition to the ML51 platform, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the development board and becoming a stand-alone mass production programmer.
