An evaluation board for ARGB lighting application
Supplier:
Nuvoton
Certification:
The NuMaker-Lighting-ARGB is an evaluation board for ARGB lighting application. It is an independent daughter board that must be connected to the NuMaker mother board through the Arduino interface connector when being used. For the development flexibility, the NuMaker-Lighting-ARGB provides the pin definition switches for connecting with different NuMaker mother boards, such as NuMaker-NUC1262SE, NuMaker-NUC1261SG, NuMaker-M252SD, and NuMaker-M032SE. Furthermore, the NuMaker-Lighting-ARGB also includes 4 ARGB connectors and an external 5V power jack to extend more ARGB LED strips, which can meet the better scenario of a larger number of lights.
Ordering no. :NK-ARGBLED

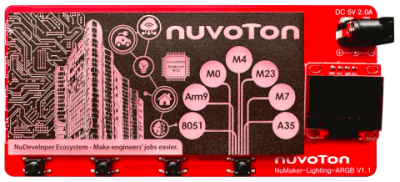

front image
back image
side image
Datasheet
