NuMaker-NUC1262SE
An evaluation board for NUC1262 Series
Supplier:
Nuvoton
Certification:

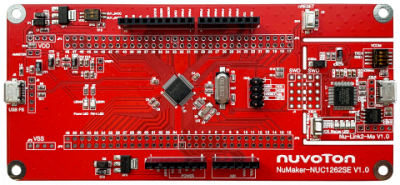

The NuMaker-NUC1262SE is an evaluation board for Nuvoton NuMicro NUC1262SE, NUC1262NE, and NUC1262LE microcontrollers. The NuMaker-NUC1262SE consists of two parts: an NUC1262SE target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-NUC1262SE is designed for project evaluation, prototype development and validation with power consumption monitoring function.
The NUC1262SE target board is based on NuMicro NUC1262SE4AE. For the development flexibility, the NUC1262SE target board provides the extension connectors of NUC1262SE4AE, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation.
In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.
ReferenceNK-NUC1262SE
