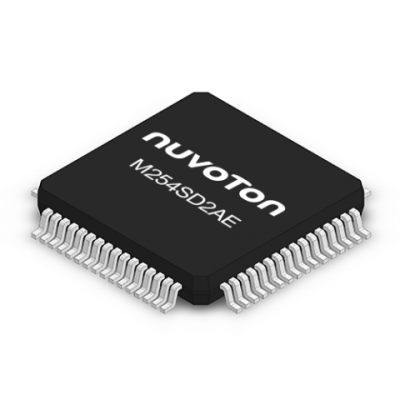

M254SD2AE

The NuMicro M254SD2AE 32-bit microcontroller is based on Arm Cortex-M23 core using Armv8-M architecture with COM/SEG LCD driver. It runs up to 48 MHz and features 64 Kbytes Flash memory, 8 Kbytets SRAM, 1.75V ~ 5.5V wide operating voltage, 5V I/O tolerance, and -40℃ to 105℃ operating temperature.

M254SD2AE includes a 8 x 28, 6 x 30, 4 x 32 COM/SEG LCD driver with selectable bias voltage and duty, and it also built-in charge-pump to support 3V to 5V wide voltage of LCD panel.

M254SD2AE provides plenty of peripherals such as Timers, Watchdog Timers, RTC, 5 channels of PDMA, 3 sets of UART, 1 setof Universal Serial Control Interface (USCI), 1 set of SPI/ I²S, 1 set of I²C, 1 set of ISO-7816-3, 6 channels of basic PWM, making it highly suitable for connecting comprehensive external modules. It also integrates high performance analog circuit, such as 16 channels of 12-bit 730 kSPS ADC, and a temperature sensor to reduce external components.

Supported packages LQFP64 ( 7 mm x 7 mm ) with pin-compatible for different part numbers make the system design and parts change easily.

Target Application:

Handheld meter
Thermostat
Smart Home / Home Appliance
Industrial Control / Industrial Automation
Temperature/Humidity Logger
Key Features:

•
Operating Characteristics

-Voltage range: 1.75V ~ 5.5V

-Temperature range: - 40 ℃ ~ 105 ℃

-EFT 4.4 KV

-ESD HBM 7 KV


•Core

-Arm Cortex-M23 core using Armv8-M architecture, running up to 48 MHz, without TrustZone

-32-bit hardware multiplier/divider



•Memories

-64 KB Flash

-8 KB SRAM

-4 KB LDROM

-1-region eXecute-Only-Memory (XOM)

-ISP/ICP/IAP programming



•Clocks

-4 ~ 32 MHz external high speed crystal oscillator (HXT) for precise timing operation

-32.768 kHz external low speed crystal oscillator (LXT) for RTC function and low-power system operation

-48 MHz internal high speed RC oscillator (HIRC) for system operation (Factory pre-trimmed to ±0.25% and frequency deviation ±2.5% over entire temperature from -40°C ~ 105 °C)

-4.032 MHz internal high speed RC oscillator (MIRC) for system operation

-38.4 kHz internal low speed RC oscillator (LIRC) for Watchdog Timer and wake-up operation



•COM/SEG LCD Driver

-8 x28, 6 x 30 & 4 x 32 COM/SEG LCD Driver

-Built-in charge-pump feature

-Supports 3V to 5V LCD panel

-Supports 1/2, 1/3 and 1/4 bias voltage

-Supports 1/4 duty, 1/6 duty and 1/8 duty



•Power management

-Integrated with Power-on Reset, Brown-out Reset and Low Voltage Reset

-Built-in LDO Integrated with Power-on Reset, Brown-out Reset and Low Voltage Reset

-Support RTC with independent VBAT voltage source pin


•Low Power Consumption

-110 μA/MHz in operating mode

-3.8 μA in Power-down mode (RTC on, RAM retention)

-2.2 μA in Power-down mode (RTC off, RAM retention)

-1.6 μA in Deep Power-down mode



•Timers

-Four 32-bit timers

-One 24-bit SysTick timer

-One independent watchdog

-One window watchdog

-RTC with Calendar and Alarm



•PDMA

-5 channels



•Analog

-16 channels of 12-bit 730 kSPS ADC

-2 sets of rail-to-rail analog comparators (ACMP)



•Communication interfaces

-3 sets of UART interfaces

-1 set of I²C interfaces

-1 set of SPI/I²S

-1 set of Smart Card Interface (ISO-7816-3)

-1 set of USCI (configured as UART, SPI or I²C)



•96-bit Unique ID ( UID )


•128-bit Unique Customer ID ( UCID )


•Packages

-LQFP64 ( 7 mm x 7 mm )
