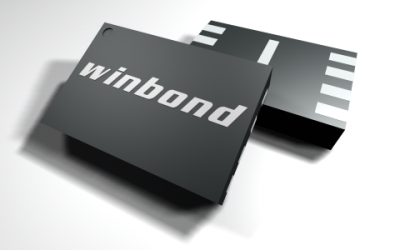

W25Q16JVUXIM

Introduction:
The W25Q16JV 16M-bit Serial Flash memory product from Winbond is an innovative storage solution for systems with limited space, pins, and power. Falling under the 25Q series, this Serial NOR Flash device outperforms standard flash devices by offering robust flexibility and performance. It operates within a power supply of a single 2.7V to 3.6V exhibiting minimal current consumption of up to 1µA for power-down.

Function & Applications:
The device is perfect for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP), and storing voice, text, and data. It has been engineered to support the standard Serial Peripheral Interface (SPI), along with high-performing Dual/Quad output. With capabilities to support SPI clock frequencies of up to 133MHz, it can offer equivalent clock rates of 266MHz (133MHz x 2) for Dual I/O and 532MHz (133MHz x 4) for Quad I/O when utilizing the Fast Read Dual/Quad I/O instructions. This product is ideal for a range of applications including automotive and industrial usages owing to its enhanced performance and efficiency.

Performance Parameters:
W25Q16JV is capable of achieving continuous data transfer rates of 66MB/S. Furthermore, it can perform a minimum of 100K Program-Erase cycles per sector and offers a data retention capacity of more than 20 years.

Package Types, Interface & Pin Configuration:
The device comes in a range of space-efficient package forms including 8-pin SOIC 150-mil, 8-pin SOIC 208-mil, 8-pad USON 2X3mm/4x3-mm, 8-pad XSON 4x4-mm, and 8-pad WSON 6x5-mm. It supports standard SPI, Dual SPI, and Quad SPI interface configuration.

Reliability & Lifespan:
Esteemed for its reliability and lifespan, the W25Q16JV boasts of a secure write-protect functionality, as well as power supply lock-down, solidifying its position as a dependable and durable product. It offers a remarkable data retention lifespan that spans over 20 years, showing its enduring reliability.

Standards & Certifications:
The W25Q16JV adheres to JEDEC standard manufacturer and device ID and SFDP Register, giving it a truly global acceptance. Furthermore, the product complies with the certifications of established automotive and industrial manufacturing standards, ensuring its high conformity to safety and quality measures.

Application Cases & Reference Designs:
The compact yet robust performance of W25Q16JV makes it suitable for a wide variety of applications that demand high storage capacity, fast transfer rates, and longevity. It is amply deployed in automotive dashboards transforming them into sophisticated electronic devices rendering real-time 2D/3D image information. Furthermore, Winbond's SpiFlash memories now support a myriad of advanced driver assist systems, comfort, and entertainment applications allowing for efficient information rendering and secure code execution in quick boot times for time-critical applications.
