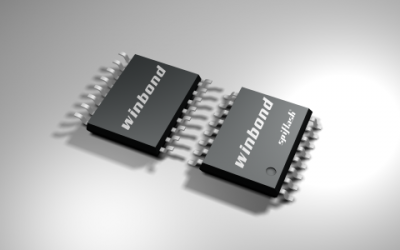

W25Q512JVFIQ

Introduction:
The W25Q512JV, part of Winbond's W25Q Series, is a 512M-bit Serial Flash memory designed to provide an exceptional storage solution for systems with limitations in space, pins, and power. It features a combination of versatility and added benefits that considerably surpasses standard Serial Flash devices. Ideal for code shadowing to RAM, executing code directly through Dual/Quad SPI, and storing a variety of forms of data, it serves as a comprehensive solution in memory storage.

Function & Applications:
The W25Q512JV has diverse operational features, including code shadowing to RAM, executing code directly from Dual/Quad SPI and storing voice, text, and data. These capabilities make it a versatile technology applicable in multiple industries. It is particularly beneficial in systems that require flexibility in data and parameter storage and excels in the execution of code (XIP) directly.

Performance Parameters:
With clock frequencies reaching up to 133MHz, the W25Q512JV performs standard, dual, and quad SPI operations. In the dual I/O mode, it supports clock rates equivalent to 266MHz, and in quad I/O mode, it supports equivalent clock rates of 532MHz. It guarantees a minimum of 100,000 Program-Erase cycles with a data retention period of over 20 years, providing continuous data transfer rates of 66MB/S.

Package Types, Interface & Pin Configuration:
This device supports various interfaces, including the standard Serial Peripheral Interface (SPI), Dual/Quad I/O SPI, which includes Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2, and I/O3. The W25Q512JV comes in multiple accommodating package types, such as the 8-pad WSON 8x6-mm, 16-pin SOIC 300-mil (additional /Reset pin), and also the 24-ball TFBGA 8x6-mm (5x5 ball array).

Reliability & Lifespan:
The W25Q512JV offers a broad operating temperature range of -40°C to +85°C. It also supports reliable power management with a single 2.7 to 3.6V supply and has low power consumption, as low as 1µA for power-down. Its high reliability is further underlined by its capability of performing a minimum of 100,000 Program-Erase cycles and providing more than 20 years of data retention.

Standards & Certifications:
The W25Q512JV supports JEDEC standard manufacturer and device ID, a 64-bit Unique Serial Number, and three 256-bytes Security Registers. It adheres to specific standards set by the industry, enhancing its reliability and suitability for various applications.

Application Cases & Reference Designs:
The W25Q512JV serves as a critical component in automotive applications, including console control, navigation, and digital display systems. It is leveraged in many devices requiring high-quality, reliable flash memory, from space-constrained systems to advanced applications, using small packages and high densities.
