W25Q16JLSSIG

Introduction

Winbond's W25Q16JL is a high-performance 16Mb Serial NOR Flash memory device that operates on a voltage range of 2.3V to 3.6V. It is designed to interface with a wide range of high-speed microcontrollers via SPI, Dual SPI, Quad SPI, and expressly mentions support for the SPI4 I/O configuration. The device is not suitable for automotive applications but is widely available for industrial mass production.

Function & Applications

The W25Q16JL serves as non-volatile storage for code, data, and images that can be used by microcontrollers and processors for a variety of applications. This includes consumer electronics, mobile devices, networking, and industrial applications where reliable and persistent data storage is crucial. Its primary function is to store system boot code, firmware, and other critical data that need to be preserved across power cycles.

Performance Parameters

This Serial NOR Flash device boasts frequencies up to 50/104MHz, providing rapid data transfer rates that facilitate efficient system boot-up and execution-in-place (XIP) capabilities. It incorporates a uniform sector architecture with 4KB sectors, enabling flexible data management and erase capabilities.

Package Types, Interface & Pin Configuration

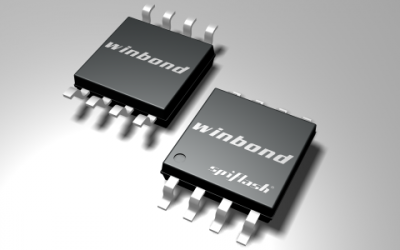

The W25Q16JL is available in multiple package types adjusted to suit different space and board layout requirements. These packages include:
- SOIC8 (150mil)
- SOIC8 (208mil)
- WSON (6x5mm)
- VSOP8 (150mil)
- USON (2x3mm)

With the provision for SPI, Dual SPI, and Quad SPI, it offers versatility in interfacing and ensures compatibility with a wide array of existing hardware designs. The pin configuration supports the standard SPI protocol and additional pins for Dual and Quad SPI modes, which enable higher throughput and faster data access.

Reliability & Lifespan

While specific reliability and lifespan parameters are not detailed, NOR Flash memories like the W25Q16JL are known for high endurance and long data retention. They are usually rated for a large number of program/erase cycles and can retain data for an extended period, typically over a decade.

Standards & Certifications

The W25Q16JL is produced following industry standards for electronic components. It adheres to JEDEC standards which govern the microelectronics industry, ensuring compatibility and reliability.

Application Cases & Reference Designs

Winbond's NOR Flash products are used in various applications ranging from digital cameras, solid-state drives (SSDs), Bluetooth devices to complex industrial control systems. Reference designs often include using these memory devices alongside microcontrollers or processors to store firmware that can be updated as required. The compact form factor and low power consumption of the W25Q16JL make it an appealing choice for portable, battery-powered applications. Additionally, the high-speed interface permits smooth integration within systems demanding minimal latency for data access.
