W25Q64JWSSIQ

Introduction:

The W25Q64JW by Winbond is a 64M-bit Serial Flash memory that is part of the company's 25Q series. It is specifically designed for systems with limited space, power, and pin capacity. The device is ideal for code shadowing to RAM, executing code from Dual/Quad SPI (XIP), as well as storing voice, text, and data. The W25Q64JW operates on a power supply between 1.7V and 1.95V, and its current consumption is as low as 1µA during power down. Furthermore, the components are offered in space-saving packages.

Function & Applications:

The W25Q64JW can store up to 64M-bit of information, arranged into 32,768 programmable pages, each containing 256 bytes. This capacity ensures its suitability for applications that require data and parameter storage including automotive, industrial, and digital display applications. Also, its advanced security features such as Software and Hardware Write-Protect and Special OTP protection makes it suitable for applications where data security is paramount.

Performance Parameters:

The device supports standard SPI, Dual/Quad output as well as Dual/Quad I/O SPI. SPI clock frequencies of up to 133MHz are supported, allowing equivalent clock rates of 532MHz for Quad I/O. It can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories. The device has a 66MB/S continuous data transfer rate and a minimum of 100k Program-Erase cycles. Its data retention rate is over twenty years.

Package Types, Interface & Pin Configuration:

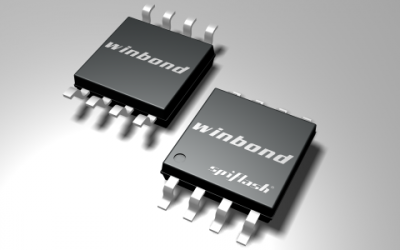

The W25Q64JW comes in different packages including: 8-pin SOIC 208-mil, 8-pad XSON 4x4-mm, 8-pad USON 4x3-mm, 8-pad WSON 6x5-mm / 8x6-mm, 24-ball TFBGA 8x6-mm (5x5 ball array), and 12-ball WLCSP. The options for the interface include Standard SPI, Dual SPI, and Quad SPI.

Reliability & Lifespan:

With a lifespan of at least 20 years data retention and a minimum of 100k program-erase cycles, the W25Q64JW is a reliable choice for a wide range of applications. Designed to withstand a wide temperature range between -40°C to +105°C, this robust device can function in diverse conditions.

Standards & Certifications:

This device complies with JEDEC standards for manufacturer and device identification. It has a 64-bit unique serial number and three 256-bytes security registers.

Application Cases & Reference Designs:

The W25Q64JW is suitable for a wide range of applications. Its use in automotives offers sophisticated electronic features and improved safety, as well as greater information about the car through digital displays in dashboards. Its fast processors and SpiFlash memories provide instant-on and real-time 2D/3D image rendering. The W25Q64JW is also used in comfort, entertainment and navigation setups in the center console of cars. It includes SpiFlash memories which are offered in small packages for space-constrained systems and high density ones for advanced applications. The memory functions as a safeguard for boot code and other critical data.
