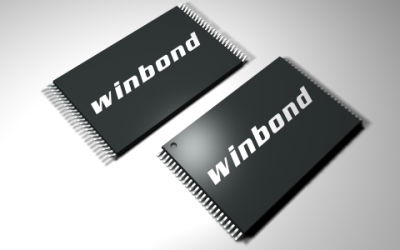

W29N01HVSINA

The Winbond W29N01HV is a 1-gigabit (128M-byte) Single-Level Cell (SLC) NAND Flash memory designed for use in embedded systems with limited space, pins, and power requirements. It is an ideal solution for code shadowing to RAM, solid-state applications, and storing media data such as voice, video, text, and photos in various applications like the Internet of Things (IoT), automotive, networking, storage systems and consumer electronics.

Function & Applications:

W29N01HV is a high-quality SLC NAND Flash memory suitable for various applications, including Automotive, Networking, Storage, Set-Top-Box, Mobile phones, Printers, Industrial, and other applications.

Performance Parameters:

The W29N01HV SLC NAND Flash memory delivers excellent performance, with a fast random read time of 25us, a sequential read cycle time of 25ns, a typical page program time of 250us, and block erase time 2ms(typ). It has an endurance of 100,000 erase/program cycles and a data retention of 10 years.

Package Types, Interface & Pin Configuration:

The W29N01HV features a standard NAND flash memory interface using a multiplexed 8-bit bus for transferring data, addresses, and command instructions. It supports multiple package types, such as 48-pin TSOP1, 48-ball VFBGA, and 63-ball VFBGA, making it highly adaptable to various design requirements.

Reliability & Lifespan:

The W29N01HV SLC NAND Flash memory boasts a high level of reliability, with an endurance of 100,000 erase/program cycles and a data retention of up to 10 years, ensuring consistent performance in a wide range of applications.

Standards & Certifications:

The W29N01HV complies with industry standard specifications, and it is a direct drop-in replacement for equivalent products from other suppliers. Winbond's feature set is a superset of the features that other suppliers offer. The command set, the interface, and the packages are the same as what other suppliers provide.

Application Cases & Reference Designs:

Winbond SLC NAND flash memory products, such as W29N01HV, are used in various real-world applications, including IoT devices, automotive systems, networking equipment, storage devices, set-top boxes, DSL and cable modems, digital TVs, mobile phones, printers, industrial systems, and more. The Winbond W29N01HV, with its high-quality SLC NAND technology and broad compatibility, is an excellent choice for a range of embedded devices requiring stable storage solutions.
