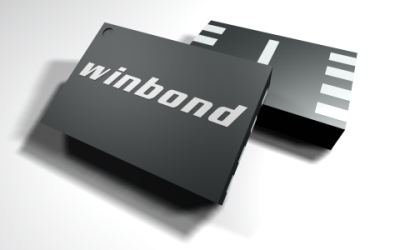

W25Q10EWUXIE

• Introduction

The W25Q10EW is a 1M-bit Serial NOR Flash memory device produced by Winbond, recognized for its high reliability and performance in data storage. This Serial Flash memory provides a storage solution with improved speed and flexibility, satisfying the growing demands for efficient data handling in various electronic applications.

• Function & Applications

The W25Q10EW is designed with a Serial Peripheral Interface (SPI) capable of Single, Dual, or Quad I/O operations, enhancing data transfer speed and system efficiency. It's suited for applications demanding reliable and persistent storage, such as in portable devices, consumer electronics, and various industrial platforms. Though not recommended for new designs in automotive or industrial applications, its existing uses include code shadowing to RAM, storing user data, and facilitating fast boot times.

• Performance Parameters

Equipped with a supply voltage range of 1.65V - 1.95V and an operating frequency of 104MHz, the W25Q10EW can achieve high transfer rates, allowing devices to execute code directly through the SPI interface with XIP. With uniform 4KB sectors, it allows for efficient memory utilization and management.

• Package Types, Interface & Pin Configuration

Various packaging options for the W25Q10EW include SOIC8 150 mil, WLCSP8, VSOP8 150 mil, and USON8 2X3mm. These packages offer flexibility for space-constrained applications, ensuring a small footprint without sacrificing performance. The device features a traditional SPI pin configuration, also supporting Dual and Quad SPI interfaces, which enable faster data throughput.

• Reliability & Lifespan

Winbond's W25Q10EW demonstrates steadfast reliability with features like software and hardware write-protect, software reset, and a configurable hardware/RESET pin. With an active read current of just 1mA and a power-down current of 0.5µA, it delivers power efficiency for battery-sensitive designs, and its support for erase/program suspend and resume operations contributes to its robustness.

• Standards & Certifications

While W25Q10EW is not recommended for new automotive or industrial designs, it still conforms to the rigorous quality standards that Winbond upholds for its memory products. The device offers a temperature range tolerance of -40℃ to 85℃, suitable for challenging environmental conditions.

• Application Cases & Reference Designs

The W25Q10EW has been effectively employed in scenarios that require a compact form factor and high-density data storage.
