NuMaker-M2A23SG

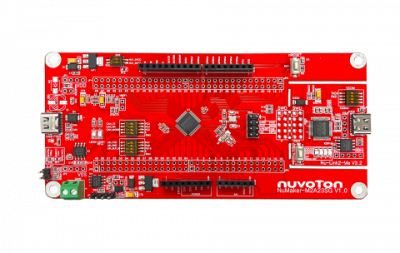

The NuMaker-M2A23SG is an evaluation board for Nuvoton NuMicro M2A23SG5AC, M2A23S  microcontrollers. The NuMaker-M2A23SG consists of two parts: an M2  target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M2A23SG is designed for project  evaluation, prototype development and validation with power consumption monitoring function.

The M2A23 target board is based on NuMicro M2A23SG5AC. For the development flexibility, the M2A23 target board provides the extension connectors, the Arduino UNO compatible headers and the capability of adopting multiple power supplies. The M2A23 target board also provides CAN and LIN transceiver for relative function development. Furthermore, the Nuvoton-designed ammeter connector can measure the power consumption instantly, which is essential for the prototype evaluation .

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.
