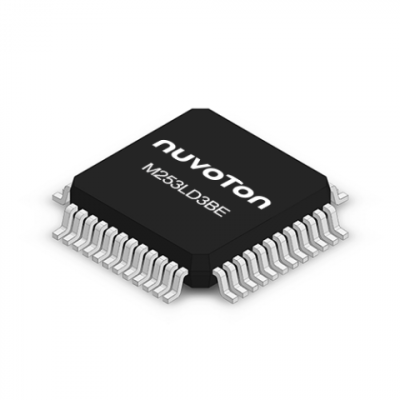

M253LD3BE

M253LD3BE 32-bit microcontroller is based on Arm® Cortex®-M23 core for Armv8-M architecture. It runs up to 48 MHz and features 128 Kbytes Flash, 16 Kbytets SRAM, 1.75V ~ 5.5V wide operating voltage, and -40°C to +105°C operating temperature.

M253LD3BE includes a crystal-less USB 2.0 full speed device and one set of CAN FD interface. The USB interface supports up to 17 configurable endpoints, up to 5 VCOMs, and maximum 1 Kbytes buffer size.

M253LD3BE provides plenty of peripherals such as Timers, Watchdog Timers, 5 channels of PDMA, 5 sets of UART, 2 sets of I²C, 1 set of SPI/I2S and 1 set of Universal Serial Control Interface (USCI). It also includes high performance analog front-end circuit blocks, such as 12 channels of 12-bit 880 kSPS ADC, 6 channels of 16-bit PWM, and a temperature sensor to enhance product performance, to reduce external components and form factor simultaneously.

Supported packages LQFP48 (7mm x 7mm) with pin-compatible for different part numbers make the system design and parts change easily.

Target Application:

•USB Bridge
•Data Collector
•Battery Management System
•Automotive Related Module

Key Features:

•Operating Characteristics
-Voltage range: 1.75V ~ 5.5V
-Temperature range: - 40 ℃ ~ +105 ℃
-EFT 4.4 KV
-ESD HBM 7 KV

•Core
-Arm Cortex-M23 core using Armv8-M architecture, running up to 48 MHz, without TrustZone
-32-bit hardware multiplier/divider

•Memories
-64 KB Flash
-16 KB SRAM
-4 KB LDROM
-ISP/ICP/IAP programming

•Clocks
-4 ~ 32 MHz external high speed crystal oscillator (HXT) for precise timing operation
-32.768 kHz external low speed crystal oscillator (LXT) for RTC function and low-power system operation
-48 MHz internal high speed RC oscillator (HIRC) for system operation (Factory pre-trimmed to ±0.25% and frequency deviation ±2.5% over entire temperature from -40°C ~  +105 °C
-4.032 MHz internal high speed RC oscillator (MIRC) for system operation
-38.4 kHz internal low speed RC oscillator (LIRC) for Watchdog Timer and wake-up operation

•Power management
-Integrated with Power-on Reset, Brown-out Reset and Low Voltage Reset
-Built-in LDO

•Low Power Consumption
-130 μA/MHz in operating mode
-35 μA/MHz in idle mode
-1.7 μA in Power-down mode (RTC off, RAM retention)

•Timers
-Four 32-bit timers
-One 24-bit SysTick timer
-One independent watchdog
-One window watchdog
-RTC with Calendar and Alarm

•PDMA
-5 channels
-Channel can be operated by – software trigger, SPI/I²S, UART, I²C, USCI, ADC and Timer

•Analog
-12 channels of 12-bit 880 kSPS ADC

•Communication interfaces
-5 sets of UART interfaces
-2 sets of I²C interfaces
-1 set of SPI/I²S
-1 set of USCI (configured as UART, SPI or I²C)

•CAN FD
-1 set of CAN FD controller with up to 64 data bytes per message
-Compliant with CAN protocol version 2.0 part A, B and ISO 11898-1: 2015
-Programmable receive and transmit FIFO
-Accessible 1-Kbyte RAM memory to allocate up to 256 words

•USB
-Supports 17 endpoints for configurable Control/Bulk/Interrupt/Isochronous transfer types and maximum 1024 bytes’ buffer size
-Compliant with USB 2.0 Full-Speed specification
-Provides 1 interrupt vector with 4 different interrupt events (NEVWK, VBUSDET, USB and BUS)

•96-bit Unique ID ( UID )

•128-bit Unique Customer ID ( UCID )

•Packages
-LQFP48 ( 7 mm x 7 mm )

•Evaluation Board
 -NuMaker-M253LEB
