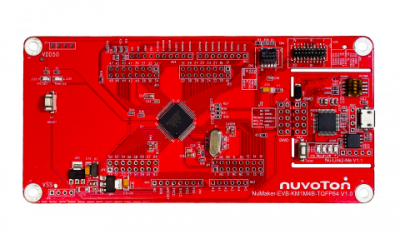

NuMaker-KE-NUMM4B54T
Evaluation board for KM1M4BF54K
Supplier:
Nuvoton
Certification:
The NuMaker-KE-NUMM4B54T consists of two parts, a KM1M4BF54K platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker KE-NUMM4B54T allows users to quickly develop and easily program and debug application.
The NuMaker-KE-NUMM4B54T offers KM1M4BF54K full pins extension connectors and Arduino UNO compatible extension connectors. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-KE-NUMM4B54T also provides an ammeter connector, allows user to monitor the microcontroller’s power consumption during development.
The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-KE-NUMM4B54T, allowing user to use as a mass production programming tool.
*Reference:KE-NUMM4B54T
