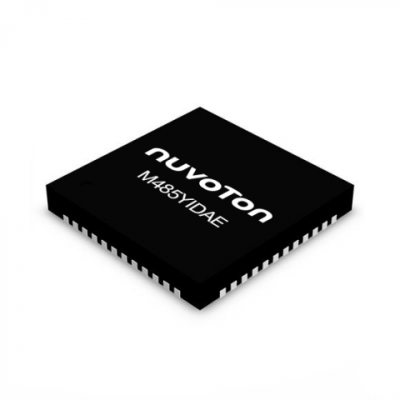

M485YIDAE

The M485YIDAE is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. It can run up to 192 MHz with 175 µA/ MHz dynamic low power consumption. The 512 KB embedded dual bank Flash memory supports OTA ( Over-The-Air ) firmware upgrade, and the 160 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution. The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory. The built-in Secure Protection ROM provides a safe space for saving confidential program or data. One-Time Programmable ROM is also included for product life-cycle management.

The M485YIDAE supports operating voltage from 1.8V to 3.6V, and industrial operating temperature from - 40 ℃ to 105 ℃ . It is embedded with hardware cryptography engine and USB FS OTG. Package type is QFN48.

Target Application:

Fingerprint Module, Smart payment, Secure IoT device, secure USB Device, etc.

Key Features:

•Core

-Up to 192 MHz Arm® Cortex ®-M4F delivering 1.25 DMIPS per MHz

-DSP instruction set

-Memory Protection Unit ( MPU )


•Memory

-512 KB zero-wait state Flash memory

-160 KB RAM, including 32 KB external SPI Flash cache

-4 KB Secure Protection ROM

-2 KB One-Time-Programmable ROM


•Cyclic Redundancy Calculation Unit


•16-ch Peripheral DMA Controller

•External Bus Interface

-LCD parallel interface, i80 mode


•Clocks

-4 to 24 MHz crystal oscillator

-32 kHz oscillator for RTC

-Internal 12 MHz RC oscillator

-Internal 10 kHz RC oscillator

-Internal PLL up to 480 MHz


•RTC

-80 bytes of battery-powered backup registers


•Timer & PWM

-Four 32-bit timers

-Twelve Enhanced PWM with twelve 16-bit timers

-Twelve Basic PWM with two 16-bit timers

-One 24-bit count-down SysTick timer

-One watchdog timer

-One window watchdog timer


 •Cryptography Accelerator

-ECC ( P-521, B-571, K-571 )

-AES-128, 192, 256

-DES/ 3DES

-SHA-160, 224, 256, 384, 512

-HMAC

-Random number generator


 •Analog Peripheral

-One 12-bit, up to 16-ch 5MSPS SAR ADC

-Two 12-bit, 1 MSPS DAC

-Two rail-to-rail comparators

-Two operational amplifiers


•Communication Interface

-Up to 6 low power UART interfaces ( 17 Mbps ) , including 2 LIN interfaces

-Up to 3 ISO-7816 interfaces ( 3.4 MHz ) , supporting full duplex UART mode

-Three I²C interfaces ( Up to 3.4 Mbps )

-One SPI Flash interface ( Up to 96 MHz ) supports quad mode

-One Quad- SPI interface ( Up to 96 MHz )

-Up to 3 SPI / I²S interfaces ( SPI up to 96 MHz , I²S up to 192 kHz/16-bit )

-One I²S interface ( 192 kHz/32-bit )

-Two USCI interfaces, supporting configurable UART / SPI / I²C


Two CAN 2.0B interfaces

-One Secure Digital Host Controllers ( 50 MHz )


•Control Interface

-Two quadrature encoder interfaces

-One 24-bit, 3-ch input capture timer/counter units


•Advanced Connectivity

-USB 2.0 full speed device/ host/ OTG controller with on-chip PHY



•Operating Characteristic

-Voltage range: 1.8V to 3.6V

-Temperature range: - 40 ℃ to +105 ℃
