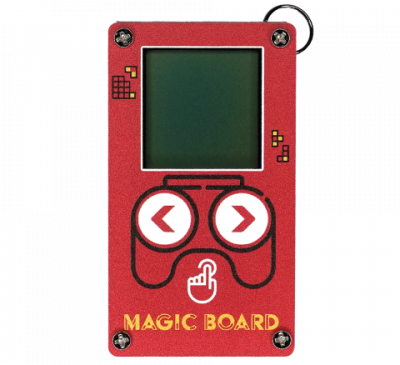

Magic Board
Enjoy Creation in One MCU
Supplier:
Nuvoton
Certification:
The Magic Board is a portable MCU playground, unleashing your creativity by downloading source code to create your own Magic. The Magic Board consists of three parts: an 8 x 24 COM/SEG TN-LCD panel board, a USB Type-C port and 3 capacitive touch keys. This unique blend of features positions the Magic Board as the optimal choice for creating compact and visually immersive systems.
Magic Board Features:
All Packed into a Remarkably Small Form Factora built-in 8 COM * 24 SEG LCD
3 capacitive Touch Keys
a USB Type-C port
NuDeveloper EcosystemFirmware updating for ISP programming via USB HID protocol.
Open-source code available for download, allowing for customization and modification.
Additionally, the microcontroller used in the Magic Board is Nuvoton NuMicro® M258SE3AE, which is based on the Arm® Cortex®-M23 core. For more information about this 32-bit MCU, please refer to the NuMicro® M254/M256/M258 Low Power LCD Series.
ordering No :NK-MAGICBD
side image
back image
