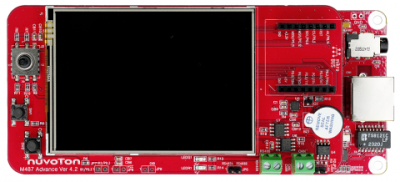

NuMaker-HMI-M487D2

NuMaker-HMI-M487D2 is composed of NuMaker-PFM-M487 as the mainboard (bottom board) and NuMaker-M487-Advance as the daughterboard (upper board). It provides a wealth of resources for software and hardware development, including software BSP packages, circuit diagrams (schematic), PCB layout file, Gerber file, user manual, and BOM table.

The development platform of NuMaker-HMI-M487D2 uses the Nuvoton Microcontroller M480 series with Arm® Cortex®-M4 as the core, running at a maximum speed of 192 MHz, and supports high-speed SPI (96 MHz) interface to connect to external SPI Flash, which can quickly read HMI Displays the GUI image for applications and can store a maximum image data of 32 MB. Otherwise, the series of M480 supports an LCD screen with an SPI interface and provides EBI (16-bit) interface, which can support LCD interface requirements in i80 mode, and its resolution can reach up to 320 x 240.

NuMaker-HMI-M487D2 是由 NuMaker-PFM-M487 作為主板 ( 底板 )，並搭配 NuMaker-M487-Advance 作為子板 ( 上板 ) 組合而成，其提供豐富的軟硬體開發套件，包含軟體 BSP 包、線路圖 ( schematic )、PCB layout 檔、Gerber 檔、使用者手冊與 BOM 表等。

而 NuMaker-HMI-M487D2 開發平台採用 Arm® Cortex®-M4 為內核的新唐微控制器 M480 系列，運行速度最高達 192 MHz，支持高速 SPI ( 96 MHz ) 介面連接外部 SPI Flash，可快速讀取人機顯示應用之 GUI 圖片且最高可儲存 32 MB 的圖像數據。 M480 系列除了支援 SPI 介面之 LCD 螢幕外，還提供 EBI ( 16-bit ) 介面，可支援 i80 模式之 LCD 介面需求，其解析度最高可達 320 x 240。

Ordering No:NK-BEDM487D2

back image

side image
