NuMaker-HMI-N9H31-A2

NuMaker HMI N9H Series

Nuvoton offers the HMI platform which is embedded with Nuvoton N9H MPU. The N9H31 series with ARM926EJ-S core can operate at up to 300 MHz. It integrated TFT-LCD display controller, 2D graphics accelerator, and JPEG codec, supporting resolution up to 1024x768 pixels in parallel port, and the color depth up to 16.7 million colors ( 24-bit ) LCD screen output to deliver gorgeous display effects. It embedded up to 32 MB DDR SDRAM, along with ample hardware storage and computing space for excellent design flexibility.

NuMaker-HMI-N9H31-A2 Overview

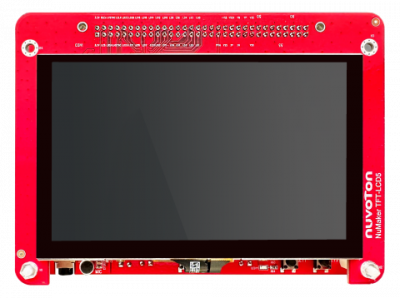

The NuMaker-HMI-N9H31-A2 is an evaluation board for GUI application development. The NuMaker-HMI-N9H31-A2 consists of two parts: a NuMaker-HMI-N9H31 main board and a NuMaker TFT-LCD5 extension board. The NuMaker-HMI-N9H31-A2 is designed for project evaluation, prototype development and validation with HMI (Human Machine Interface) function.

The NuMaker-HMI-N9H31 integrates touchscreen display, voice input/output, rich serial port service and I/O interface. The NuMaker-TFT-LCD5 can be plugged into the main board via the DIN_32x2 extension connector. The NuMaker-TFT-LCD5 includes one 5” LCD which the resolution is 800x480 with RGB-24bit and embedded the 4-wire capacitive type touch panel.

NuMaker-HMI-N9H31-A2 Evaluation Board Features

• N9H31K51IFC chip: LQFP128 pin MCP package with DDR (32 MB)
• 5’’ 800x480 LCD with CTP (Capacitive Touch Panel)
• SPI Flash: SPI Flash using W25Q256JVEIQ (32 MB) booting with quad mode or storage memory
• SD0: User SD/eMMC memory card, data storage or SDIO (Wi-Fi) device
• UART0: Connected to Virtual COM port for system development, debug message output
• JTAG interface provided for software development
• RJ45 port with Ethernet 10/100 Mbps MAC (Ethernet0)
• Microphone input and Earphone/Speaker output with 24-bit stereo Audio Codec (NAU88C22) for I²S interface
• One set of CAN transceiver and header connector
• Two sets of RS232/RS485 transceiver and DB9/header connector
• Two LED for status indication
• Two user-configurable push buttons
• One Buzzer
• USB_0 that can be used as Device/HOST and USB_1 that can be used as HOST supports pen drives, keyboards, mouse and
• rinters
• Provides over-voltage and over current protection
• 3.3V I/O power, 1.8V Memory power and 1.2V core power

*Ordering Number: NK-N9H31A2
