nuvoton nuc1263zd4ce

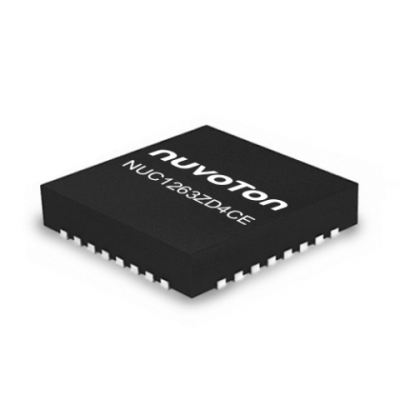

NUC1263ZD4CE

Cortex M23 MCU 64 KB Flash

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
NUC1263 Series
Core Processor
Cortex M23
Frequency
72MHz
PWM
24*16-bit
Number of I/O
22
Operating Voltage
2.5~5.5V
Memory Size
64KB
Operating Temperature
-40~+105˚C
SRAM
20KB
PDMA
10
DAC
4*8-bit
ADC
18*12-bit, Vref
UART
3
Package
QFN33
Description



Introduction

The NuMicro NUC1263ZD4CE microcontroller, a key member of the NUC1263 series developed by Nuvoton, is an innovative product designed to meet the demands of modern industrial and consumer applications. This microcontroller integrates an Arm Cortex-M23 core optimized for the Armv8-M architecture, standing out with its wide array of features including the LED Light Strip Interface (LLSI), I3C, and USB 2.0 full-speed device interfaces.

Functionality & Application Domains

The NUC1263ZD4CE microcontroller excels in controlling LED light strips, offering up to 6 channels of LLSI and 24 channels of high-speed PWM for precise control - making it an ideal choice for industrial control, lighting control, gaming keyboards and mice, DDR5 DIMM modules, graphics cards, and varied home appliances. Its built-in Security Protection ROM (SPROM) also ensures the security of intellectual property through encryption.

Performance Specifications

This microcontroller boasts impressive performance features:

- Core Speed: Up to 72 MHz.
- Memory: 64 Kbytes of Flash and 20 Kbytes of SRAM.
- Analog Capabilities: Includes 16 channels of 12-bit ADC and 4 channels of 8-bit DAC, amongst others.
- Connectivity: Offers comprehensive interfaces including USB-FS, UART, SPI/I²S, I²C, and I3C, facilitating extensive peripheral integration.

Packaging, Interface, & Pin Configuration

The NUC1263ZD4CE is available in a QFN33 (5mm x 5mm) package, ensuring pin compatibility with other Nuvoton series for seamless system design enhancements. This flexibility facilitates a wide range of applications and system designs.

Reliability & Lifespan

Designed for robust performance in a broad operational temperature range from -40°C to +105°C, this microcontroller ensures reliability and longevity in various environmental conditions. Its ESD and EFT protection features also contribute to its robustness in industrial applications.

Standards & Certifications

While specific certifications are not detailed in the provided information, the comprehensive feature set including LLSI and compliance with the MIPI I3C v1.0 standard for I3C connectivity underlines the NUC1263ZD4CE microcontroller's alignment with industry standards for performance and interoperability.

Application Cases & Reference Designs

Nuvoton provides the NuMaker-NUC1263SD evaluation board and Nu-Link debugger as essential tools for product evaluation, development, and rapid prototyping, supported across various IDEs such as Keil MDK, IAR EWARM, and NuEclipse with the GNU GCC compiler. This accessibility greatly aids in developing applications ranging from industrial sensors to home appliances, enabling a seamless transition from concept to product.

In conclusion, the NUC1263ZD4CE microcontroller represents a versatile, high-performance solution tailored for a wide range of applications. Its extensive feature set, combined with strong support and development tools, positions it as an ideal choice for developers looking to leverage advanced microcontroller capabilities in their next-generation products.
