NUC1263SD4CE

Introduction

The NUC1263SD4CE is a cutting-edge 32-bit microcontroller developed by Nuvoton, belonging to the NUC1263 series. This series, enhanced with the robust Arm Cortex-M23 core based on Armv8-M architecture, integrates multiple high-performance features to cater to a wide range of applications. Equipped with a built-in 48 MHz oscillator, LED Light Strip Interface (LLSI), I3C, and USB 2.0 full-speed device interface, the NUC1263SD4CE is designed to facilitate seamless communication with PC and Mobile accessories, making it a versatile choice for developers.

Function & Applications

Primarily, the NUC1263SD4CE microcontroller serves as a powerful platform for Industrial Control, Light Control, Gaming Lighting, Keyboards/Mice, DDR5 DIMM, Graphics Cards, and Home Appliances. Its capability to run up to 72 MHz alongside a wide operating voltage of 2.5V to 5.5V and a temperature range of -40°C to +105°C, ensures high versatility across different environments and applications. The microcontroller's integration of LED Light Strip Interface (LLSI) and USB 2.0 enables sophisticated light control and peripheral connectivity, particularly beneficial in gaming and industrial applications.

Performance Parameters

This device boasts excellent storage with 64 KB Flash and 20 KB SRAM, enhanced with an independent 4 KB ISP ROM and 2 KB SPROM for secure encryption. Its analog features include 16 channels of 12-bit 800 kSPS ADC and 4 channels of 8-bit 200 kSPS DAC, supported by 4 sets of analog comparators (ACMP). The PWM supports a maximum clock frequency of 144 MHz, providing precise control over 24 channel PWM outputs.

Package Types, Interface & Pin Configuration

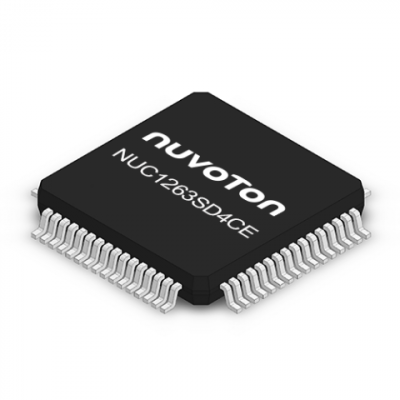

The NUC1263SD4CE is available in an LQFP64 (7 mm x 7 mm) package, ensuring pin compatibility with other Nuvoton series for ease in system design and part replacements. It supports diverse connectivity options including USB-FS interface, 3 sets of UART, SPI / I²S, and I²C besides the advanced 2 sets of I3C for high-speed data transmission.

Reliability & Lifespan

Designed for longevity and reliability, the NUC1263SD4CE withstands harsh conditions, evidenced by its high anti-interference capability with 8 kV ESD (HBM)/ 4.4 kV EFT. This resilience ensures a stable operation over its guaranteed lifespan, catering to industrial-grade applications.

Standards & Certifications

While specifics on standards and certifications are not detailed, Nuvoton’s adherence to industry norms, especially for electrical and communication protocols like USB 2.0 and I3C standards, is implicit. The SPROM inclusion highlights a commitment to security and intellectual property protection.

Application Cases & Reference Designs

Nuvoton furnishes developers with the NuMaker-NUC1263SD evaluation board and the Nu-Link debugger to expedite product development and evaluation. These tools are compatible with widely recognized IDEs such as Keil MDK, IAR EWARM, and NuEclipse with GNU GCC compiler, allowing for a streamlined development process.

Given its rich feature set, the NUC1263SD4CE is adept at enabling sophisticated control and connectivity for a myriad of applications, from intricate light-control systems in the gaming industry to robust industrial controls and sensors, thereby illustrating its versatility and performance prowess in the microcontroller domain.

In conclusion, the NUC1263SD4CE by Nuvoton offers a balanced amalgamation of performance, reliability, and versatility, making it an excellent choice for developers across varied fields aiming to innovate and enhance their product offerings.
