NUC1263ND4CE

Introduction

Nuvoton Technology presents the NUC1263ND4CE microcontroller, a pivotal addition to the NUC1263 series, designed to cater to modern, high-demand electronic applications. This microcontroller integrates the Arm Cortex-M23 core, boasting an architecture that aligns with the Armv8-M standard, thus ensuring compatibility with state-of-the-art application demands. Alongside its core advantages, the NUC1263ND4CE distinguishes itself with its LED Light Strip Interface (LLSI), I3C, and USB 2.0 full-speed device capabilities, setting a new benchmark in the realm of microcontrollers.

Function & Applications

The NUC1263ND4CE offers a versatile palette of functionalities, foremost of which is its LED Light Strip Interface (LLSI), offering precise control over LED lighting, making it indispensable for lighting control applications. Its support for I3C protocol enhances communication efficiency with sensors and IoT devices, aligning with MIPI I3C standard specifications. Furthermore, its USB 2.0 capability ensures seamless interaction with PC and mobile accessories, extending its utility in gaming controls, home appliances, industrial sensors, and industrial control systems.

Performance Parameters

Key performance characteristics include operating at a frequency of up to 72 MHz, embedded with 64 KB flash memory and 20 KB SRAM, ensuring ample space for complex applications. The device operates over a wide voltage range (2.5V to 5.5V) and temperature spectrum (-40°C to +105°C), ensuring resilience in varying operational environments. The microcontroller's analog features, such as its 16 channels of 12-bit ADC and 4 channels of 200 kSPS DAC, alongside up to 24 PWM output channels, underscore its suitability for high-performance industrial applications.

Package Types, Interface & Pin Configuration

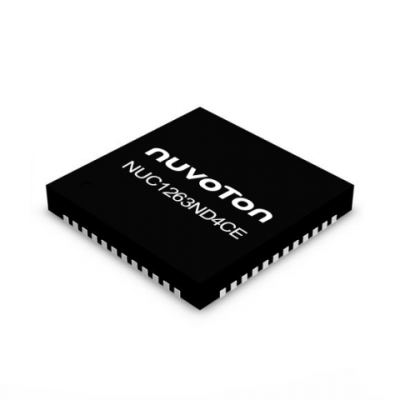

Housed in a QFN48 (7mm x 7mm) package, the NUC1263ND4CE fosters flexibility in system design due to its pin compatibility with other Nuvoton series. It boasts a comprehensive set of interfaces, including 3 sets each of UART, I²C, SPI/I²S, and 1 set of I3C, accommodating a broad scope of external modules for an optimized, high-efficiency design.

Reliability & Lifespan

Emphasizing reliability, the NUC1263ND4CE integrates robust protection against electrostatic discharge (ESD) and electrical fast transients (EFT), enhancing its durability and lifespan in harsh electrical environments. Its built-in Security Protection ROM (SPROM) addresses critical intellectual property and data security concerns, ensuring the microcontroller's longevity and dependable performance.

Standards & Certifications

While specific standards and certifications were not enumerated, the adherence to MIPI I3C standards and the provision of high anti-interference capabilities underscore the microcontroller's compliance with industry best practices and its readiness for integration into regulated environments.

Application Cases & Reference Designs

Primary applications for the NUC1263ND4CE span across the industrial and consumer electronics spectrum, including, but not limited to, industrial control, sensor integration, sophisticated lighting solutions, gaming peripherals, and home appliances. Nuvoton further supports developers with the NuMaker-NUC1263SD evaluation board and the Nu-Link debugger, complemented by integration support from popular IDEs such as Keil MDK, IAR EWARM, and NuEclipse with GNU GCC compiler, facilitating streamlined product development and quick time to market.

Conclusion

With its robust feature set, wide application range, and adherence to industry standards, the NUC1263ND4CE microcontroller by Nuvoton Technology emerges as an ideal choice for developers seeking reliability, performance, and versatility in their next-generation electronic projects. This microcontroller not only meets the modern-day challenges faced by developers but also provides a scalable, efficient, and secure platform for the development of innovative applications in an array of industries.
