FK9B0439ZL(T)
Small Size MOSFET for Automotive Switching
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Type
Nch
VGS
+20/-10V
VDS
40V
ID
11A
IDp
88A
PD
2W
RDS(on)@VGS=4.5V [Typ]
11mΩ
RDS(on)@VGS=10V [Typ]
9.5mΩ

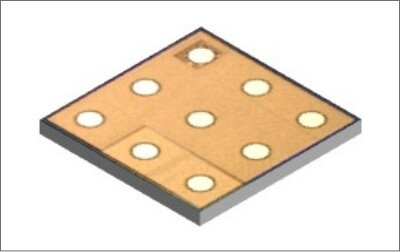

Package
MLGA009-W-1919-RA
IDSS [Max]
1µA
Vth [Min]
1V
Vth [Max]
3V
Qgd [Typ]
5nC
Qgs [Typ]
4.5nC
Qg [Typ]
28nC
tf [Typ]
55ns
td(off) [Typ]
85ns
tr [Typ]
20ns
td(on) [Typ]
15ns
Crss [Typ]
100pF
Coss [Typ]
190pF
Ciss [Typ]
1500pF
IGSS@VGS=±8V [Max]
µA
IGSS@VGS=+16V/-8V [Max]
±10µA
Tstg
-55~+150°C
Tch
150°C
Description
Advantages
Benefit for Automotive grade small form factor devices
1.Low failure rate Failure rate; 1/30 of mold resin package *Based on Nuvoton QA records
2.Small package size Small size; 1.2 x 1.2mm
3.Prevent malfunction caused by noise Low inductance; L＝0.01nH
Target Application
Equivalent Circuit
Absolute Maximum Rating at 25°C
Package Outline
Pin Assignment
