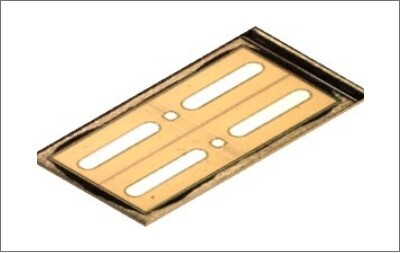

KFC7P23440L(T)
Low On Resistance MOSFET for Li-ion Battery Protection
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Product Series
12V-30V Nch Dual MOSFET
Type
Nchx2
VGS
±20V
PD
1W
Vth [Min]
1V
Vth [Max]
3V
td(on) [Typ]
75µs
td(off) [Typ]
220µs
tf [Typ]
170µs
tr [Typ]
430µs
ISSS [Max]
1µA
VSS
30V
Package
PMCP-6030-Z2
Crss [Typ]
440pF
Ciss [Typ]
4800pF
Coss [Typ]
690pF
IS
19A
ISp
90A
RSS(on)@VGS=10V [Typ]
2mΩ
RSS(on)@VGS=8V [Typ]
2.2mΩ
RSS(on)@VGS=4.5V [Typ]
3.4mΩ
Qg [Typ]
85nC
Qgs [Typ]
15nC
Qgd [Typ]
10nC
VF(s-s) [Typ]
0.8V
VF(s-s) [Max]
1.2V
Tch
150°C
Tstg
-55~+150°C
Rth
125°C/W
IGSS@VGS=+16V/-14V [Max]
-µA
IGSS@VGS=±20V [Max]
±10µA
Description
Advantages
Benefits for Li-ion battery enabled devices
1.Long battery life
Low on Resistance; 0.9mΩ@VGS=3.8V
2.Fast charge
Low on Resistance; 0.9mΩ@VGS=3.8V
2.Miniaturization
Small size; 0.6 x 0.6mm
Application example
Equivalent Circuit
Maximum Electrical Ratings Ta=25°C
Package Outline
Pin Assignment
