FCAB21A60L(T)
Low On Resistance MOSFET for Li-ion Battery Protection
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Product Series
12V-30V Nch Dual MOSFET
Type
Nchx2
VGS
±8V
PD
0.51W
Rg
2.3Ω
Vth [Min]
1.3V
Vth [Max]
2.35V
IGSS@VGS=±5V [Max]
±0.14µA
IGSS@VGS=±8V [Max]
±1µA
td(on) [Typ]
70ns
td(off) [Typ]
65ns
tf [Typ]
65ns
tr [Typ]
160ns
ISSS [Max]
1µA
VSS
12V

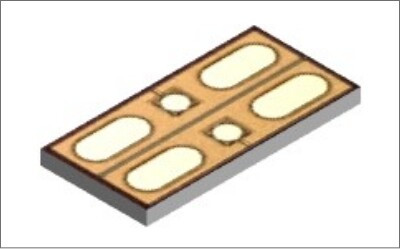

Package
TCSP1326008-N2
Crss [Typ]
410pF
Ciss [Typ]
3100pF
Coss [Typ]
500pF
IS
8.5A
ISp
85A
RSS(on)@VGS=4.5V [Typ]
3.5mΩ
RSS(on)@VGS=3.8V [Typ]
4.4mΩ
Qg [Typ]
21nC
Qgs [Typ]
9nC
Qgd [Typ]
7nC
VF(s-s) [Typ]
0.8V
VF(s-s) [Max]
1.2V
Tch
150°C
Tstg
-55~+150°C
Rth
245°C/W
Description
Advantages
Benefits for Li-ion battery enabled devices
1.Long battery life
Low on Resistance; 0.9mΩ@VGS=3.8V
2.Fast charge
Low on Resistance; 0.9mΩ@VGS=3.8V
2.Miniaturization
Small size; 0.6 x 0.6mm
Application example
Equivalent Circuit
Maximum Electrical Ratings at Ta=25°C
Package Outline
Pin Assignment
