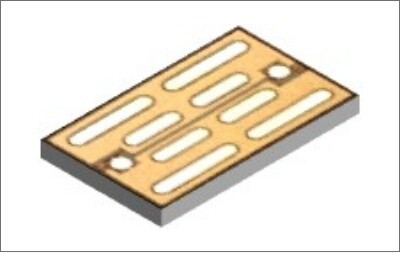

KFCAB21B10L(T)
Low On Resistance MOSFET for Li-ion Battery Protection
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Product Series
12V-30V Nch Dual MOSFET
Type
Nchx2
VGS
±8V
PD
0.62W
Vth [Min]
0.35V
Vth [Max]
1.4V
IGSS@VGS=±5V [Max]
±1µA
IGSS@VGS=±8V [Max]
±10µA
td(on) [Typ]
2.4µs
td(off) [Typ]
14µs
tf [Typ]
7µs
tr [Typ]
3.8µs
ISSS [Max]
1µA
VSS
12V
Package
TCSP2032011-N1
Crss [Typ]
1000pF
Ciss [Typ]
8050pF
Coss [Typ]
1100pF
IS
22.7A
ISp
227A
RSS(on)@VGS=4.5V [Typ]
0.9mΩ
RSS(on)@VGS=3.8V [Typ]
0.9mΩ
RSS(on)@VGS=3.1V [Typ]
1.15mΩ
RSS(on)@VGS=2.5V [Typ]
1.55mΩ
Qg [Typ]
70nC
Qgs [Typ]
17nC
Qgd [Typ]
14nC
VF(s-s) [Typ]
0.7V
VF(s-s) [Max]
1V
Tch
150°C
Tstg
-55~+150°C
Rth
202°C/W
Description
Advantages
Benefits for Li-ion battery enabled devices
1.Long battery life
Low on Resistance; 0.9mΩ@VGS=3.8V
2.Fast charge
Low on Resistance; 0.9mΩ@VGS=3.8V
2.Miniaturization
Small size; 0.6 x 0.6mm
Application example
Equivalent Circuit
Package Outline
Pin Assignment
