KU-KA44143A

KA44143A three-phase PWM/VSP motor driver debugger

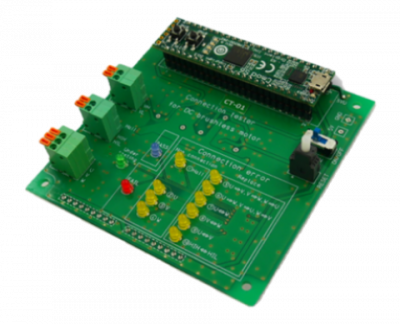

KU-KA44143A is a connection tester to support driving a three-phase brushless DC (BLDC) motor with KE-KA44143A evaluation board.

The tester can check the connection between KE-KA44143A and the motor by connecting Three-phase terminal and Hall signal terminal on the motor. The tester judge whether or not current connection is correct by manual motor rotation. Power of the tester is supplied from a PC via USB.
