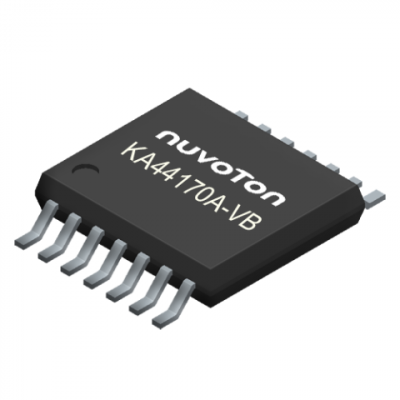

KA44170A-VB(T)

Product Description

KA44170A is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation. It is suitable for applications having input voltages of 12V and 24V both making it suitable for applications like home appliances and battery-operated cooling apparatus. An automatic phase adjustment function in the IC is provided to optimize the soft switching section and its current, so it is possible to drive the motor with low noise and high efficiency regardless of the type of motor and operating environment with a small number of components. It has a lock detection pin embedded to give the controller a message that motor is locked thereby improving the safety of operation of the motor. There is Selectable startup mode option available to us in case we want to further increase the efficiency by controlling with PWM input or at 50% duty cycle. The motor driver has a Stand By mode which utilizes low current to increase the efficiency during standby state by regulating the current flow during no usage state to 300mA.

Features

The motor speed is controlled by direct PWM input. With a wide input voltage range of 12V/24V, this IC is most suitable for usage in home appliances, office automation and factory automation (for high speed fan motor < 15krpm) equipment.

• Supply voltage range: 5.0 V to 30 V
• Built in Auto phase control with Soft Switching function
• Wide range operation (12V/24V)
• Speed Control by direct PWM input with frequency range from 3kHz to 50kHz
• Motor lock protection and built in Auto recovery Adjustable by an external capacitor
• Output pin for FG pulse (open drain)
• Output pin for lock detection (open drain)
• Various protection functions:

              Under Voltage Lock Out (UVLO)

              Thermal protection

              GND short protection

              Over Current Protection

• Selectable for Startup mode (50%duty or PWM input duty)
• Output ON Resistance：Upper + Lower 1.25Ω(typ)

             （22% less than our similar product KA44169A）

• Built in STBY control
• Package: TSSOP 14L (4.4x5.0x0.9mm3, Lead Pitch 0.65mm)

Other features:

       TSSOP 14L

it is a 14 lead package which is TSSOP (Thin Shrink Small Outline Package), it can be easily soldered with basic BGA machine and it is easy to debug as well with better accessibility to the pins to take measurements

       Under Voltage Lock Out (UVLO), Over Voltage Lock Out (OVLO), Thermal protection, Current limit Protection Adjustable by a external resistor

The wide range of protections available with this Motor driver IC makes it suitable to use with motor without worrying about the safety of appliance during operation and in standby state.

       Output ON Resistance

Upper + Lower 1.25Ω(typ) which further increase the efficiency of operation of our appliance.

       Motor lock protection and built-in Auto-recovery Adjustable by a external capacitance

Basic Specification

Applications

Refrigerator, Projector, Printer, Factory automation

Pin Out

Similar Products

KA44170A is a unique product as it has a lock detection, function generator and PWM control input to have better control over the operation of motor. TSSOP 14L package allows it to be used with BGA machines to pick up and place the components in place. The cost of the IC is also on the lower side making it apt for the cost efficient functions.

Application circuit

Note:

The application circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. The Customer is fully responsible for the incorporation of the above illustrated application circuit in the design of the equipment.

Recommend circuit

Note:

The recommended circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. Customer is fully responsible for the incorporation of the above illustrated application circuit in the production.

Reference Waveform

Condition: VCC = 24 V, PWMI = 100% duty , Cvcc = 1 μF
