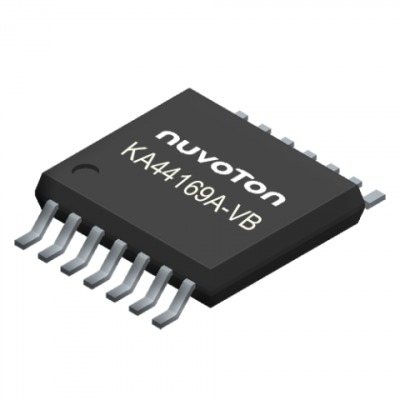

KA44169A-VB(T)

Product Description

KA44169A is a high efficiency single phase motor driver IC with built-in Soft Switching function for low noise operation. The soft switching period is automatically adjusted based on the motor current. This eliminates the need for individual adjustment of the soft switching period based on the Motor’s specifications. It also has PWM input pin which can be used to set the speed of the motor connected. It is available in TSSOP 14L package which is having a height of only 0.9mm making it suitable for small form factor appliance and applications. It can work for appliances running on 12V/24V voltage rating and with Ron of 1.6Ohms, it can be very efficient in operating conditions. It comes with a complete set of protections like Under Voltage Lock Out (UVLO), Over Voltage Lock Out (OVLO), Thermal protection and a Current limit Protection which adjustable by connecting an external resistor thus customizing the driver to the need.

Features

The motor speed is controlled by direct PWM input. With a wide input voltage range of 12V/24V, this IC is most suitable for usage in home appliances, office automation and factory automation equipment.

With a wide input voltage range of 12V/24V, this IC is most suitable for usage in OA and FA equipment.

• Supply voltage range: 5.0 V to 28 V
• Auto phase shift correction with built in Soft Switching function
• Wide range operation (12V/24V)
• Speed Control by direct PWM input
• Motor lock protection and built in Auto recovery Adjustable by an external capacitor.
• Output pin for FG pulse (open drain)
• Output pin for lock detection (open drain)
• Various protection functions:

              Under Voltage Lock Out (UVLO)

              Thermal protection

              GND short protection

              Over Current Protection

• Package: TSSOP 14L (4.4x5.0x0.9mm3, Lead Pitch 0.65mm)

Other features:

TSSOP 14L: it is a 14 lead package which is TSSOP (Thin Shrink Small Outline Package), it can be easily soldered with basic BGA machine and it is easy to debug as well with better accessibility to the pins to take measurements

Under Voltage Lock Out (UVLO), Over Voltage Lock Out (OVLO), Thermal protection, Current limit Protection Adjustable by an external resistor.

Auto phase shift correction with built-in Soft Switching function which enables smooth operation of the motor over a range of speed and increased efficiency of motor.

Basic Specification

Applications

Refrigerator, Projector, Printer, Factory automation. It is easy to connect in a driver circuit as there are not much peripheral components required. The PWM control also makes it easier to control the speed of the motor. It requires an external Hall Element to read the speed and orientation of the motor.

Package Info and Pin Out

Similar Products

This table shows that the KA44169A is one of the cost effective motor controller offered by Nuvoton and it is a PWM controlled motor controller. It is also one of the smaller form factor controllers out there so you can use it in small form factor equipment.

Application circuit

Note:

The application circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification are required in the design of the mass production set. The Customer is fully responsible for the incorporation of the above illustrated application circuit in the design of the equipment.

Recommended Circuit

Note:

The recommended circuit is an example. The operation of the mass production set is not guaranteed. Sufficient evaluation and verification is required in the design of the mass production set. Customer is fully responsible for the incorporation of the above illustrated application circuit in the production.

Reference Waveform

Condition: VCC = 12 V, PWMI = 100% duty , Cvcc = 1 μF
