MUG51TB9AE

MUG51TB9AE is a Flash embedded 1T 8051-based low-power microcontroller. It runs up to 7.3728 MHz with 16 Kbytes embedded Flash memory, 1 Kbytes embedded SRAM, 4 Kbytes Flash loader memory (LDROM), 1.8V ~ 5.5V operating voltage, and -40°C ~105°C operating temperature. MUG51TB9AE supports enhanced low current consumption at 200 μA while CPU power-on before Flash memory is initialized. Its low-power feature makes it suitable for battery-free device which harvests power from the magnetic field of coil such as stylus pen powered by EMR (Electro-magnetic Resonance) technology and RFID card.

MUG51TB9AE features low current consumption at 200 μA while CPU power-on before Flash memory is initialized. It is suitable for battery-free devices such as stylus pen powered by EMR (Electro-magnetic Resonance) technology and RFID card. The current consumption is less than 1.3 mA in normal run mode at 7.3728 MHz, and less than 1 μA in Power-down mode.

MUG51TB9AE provides rich peripherals including 24 general purpose I/Os with internal inverter, four 16-bit Timers/Counters, 2 sets of UARTs with frame error detection and automatic address recognition, 1 set of ISO7816 Smartcard interface, 1 set of SPI, 2 sets of I²C, 6 enhanced PWM output channels with dead zone control, 2 sets of analog comparators, eight-channel shared pin interrupt for all I/O ports, low voltage reset (LVR) and brown-out detector (BOD) to enhance product performance, reduce external components and form factor simultaneously.

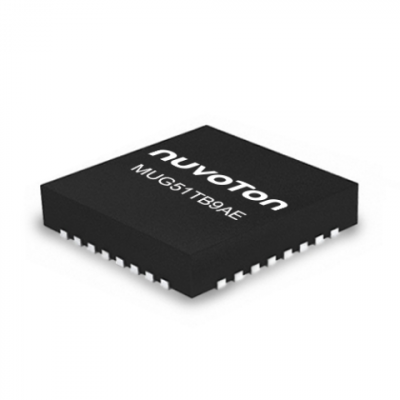

MUG51TB9AE includes the QFN33 (4mm x 4mm) package.

Target application：

Stylus pen
RFID card

Features:

•Operating Characteristics
-Voltage range: 1.8V to 5.5V
-Temperature range: -40°C to 105°C
-EFT 4.4 KV
-ESD HBM 7 KV

•Core
 -1T 8051-based core running up to 7.3728 MHz

•Memory
-16 KB Flash
-1 KB SRAM
-Up to 4 KB Flash for user program loader (LDROM)
-ISP/ICP/IAP programming
-128 Bytes SPROM

•Clocks
-Internal 7.3728 MHz MIRC oscillator with variation ±10 % within all temperature range
-Internal 38.4 kHz LIRC for low-power operating mode

•Power Management
-Integrated with Power-on Reset, Brown-out Reset and Low voltage Reset
-Normal run: 1.08 mA at 7.3728 MHz
-Power-down: 1 μA
-Power-on before Flash memory is initialized：200 μA
-Supports wake up from Power-down mode by: ACMP, GPIO, WDT, TIMER, UART, I²C, SPI, PDMA, PWM

•Timer
-Four 16-bit timers
-16-bit PWM (Up to 6 channels)
-One Independent watchdog
-One Wake-up timer

•PDMA
-Up to 2 channels

•Analog
-Two rail-to-rail comparators (ACMP)

•Communication Interface
-2 sets of UART for simple TX/RX operation
-2 sets of 400 kHz I2C interfaces
-1 set of SPI interface
-1 set of ISO 7816-3 interface supporting full-duplex UART mode

•Up to 24 I/O with interrupt capability
-Schmitt trigger input
-Four I/O modes
-Supports Schmitt type (TTL input Not supported)

•Serial Wire Debug (SWD)
-Nuvoton Nu-Link debugger support

•Development Platform Support
-Nuvoton Nu-Link with Keil and IAR development environment.
-ICP (In Circuit Programmer) support for updating internal code via Nu-Link debugger
-ISP (In System Programmer) support for updating internal code through UART, SPI, I2C, RS-485 peripheral interface
-Pin Viewer for real time monitoring the status of all I/O pins
-PinConfigure tool for pin assignment, initial code generation and OrCAD/Protel part generation

•Package
-QFN33 (4 mm x 4 mm)
