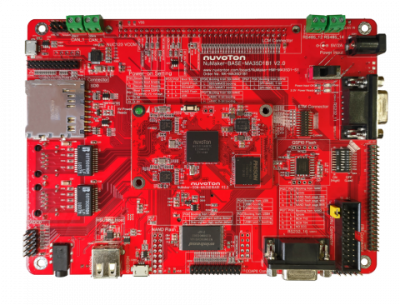

The NuMaker-HMI-MA35D1-S1 is an evaluation board for Nuvoton NuMicro MA35D1 series microprocessors, and consists of three parts: a NuMaker-SOM-MA35D16A81 SOM board, a NuMaker-BASE-MA35D1B1 base board and a 7” TFT-LCD daughter board. The SOM board integrates core components to simplify the system design, based on MA35D16A887C (BGA312 package, and stacking a 256 MB DDR), PMIC power solution, a 16 GB eMMC Flash, and two Gigabit Ethernet PHY. The NuMaker-HMI-MA35D1-S1 has rich peripherals such as 2 sets of Gigabit Ethernet, USB2.0 high-speed host and device, 2 sets of CAN FD, and SPI, I2C, UART, RS-485 serial communication ports for users to facilitate the evaluation in HMI and industrial control, home appliances, 2-wheel cluster, medical device, new energy applications, ML (Machine Learning) or your creative applications.

NuMaker-HMI-MA35D1-S1 Features

• SoM (NuMaker-SOM-MA35D16A81)
- MA35D16A887C/ BGA312 package, stacking a 256MB DDR
-PMIC power solution
-eMMC Flash 16 GB
-Gigabit Ethernet PHY x2

•Base Board (NuMaker-BASE-MA35D1B1)
-Gigabit Ethernet x2
-USB2.0 HS Host x1, USB2.0 HS Host/Device x1
-CAN FD x2
-SD2.0 (Standard SD Slot) x1
-UART x2, RS485 x2
 -ADC x8
-Camera I/F x2
-Audio codec with Mic, Headset Jack

•TFT LCD Daughter Board
-7” TFT-LCD (1024x600) with 4-wire resistive touch
