NuMaker-HMI-M467

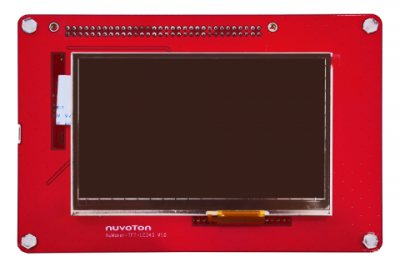

GUI development board of NuMicro M467 Ethernet/Crypto series with 1024 KB embedded Flash. NuMaker-HMI-M467 development board includes a main board (NuMaker-M467HJ) and a daughter board (4.3” TFT LCD).

NuMaker-HMI-M467HJ Features

•NuMicro M467HJHAN used as main microcontroller with function compatible with:

-M467SJHAN/M467KJHAN/M467JJHAN /M467HJHAN

•M467HJHAN full pins extension connectors
•Arduino UNO compatible extension connectors
•Ammeter connector for measuring the microcontroller’s power consumption

•Flexible board power supply:

-External VDD power connector
-Arduino UNO compatible extension connector Vin
-USB FS connector on M467HJHAN target board
-USB HS connector on M467HJHAN target board
-ICE USB connector on Nu-Link2-Me

•On-board components:

-32 MB SPI Flash
-64 MB HyperRAM
-Thermal sensor (Nuvoton NCT7717U)
-User LEDs and user buttons
-10/100M ethernet PHY
-FS-USB OTG and HS-USB OTG
-Audio Codec
-Micro SD Card slot
-CAN FD transceiver

•On-board Nu-Link2-Me debugger and programmer

-Debug through SWD interface
-Online/offline programming
-Virtual COM port function

•4.3” TFT-LCD
-Resolution of 480 x 272
-8 bit / 16 bit interface supporting 65K (RGB565)
-Capacitive touch panel
