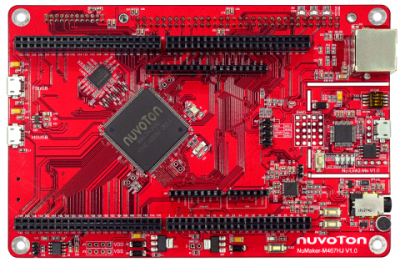

NuMaker-M467HJ
M467 EVB with 1024 KB embedded Flash
Supplier:
Nuvoton
Certification:
Development board of NuMicro M467 Ethernet/Crypto series with 1024 KB embedded Flash. This board offers the following features:
•Ethernet 10/100
•CAN FD
•3 V, 64 Mbit HyperRAM
•32 Mbit SPI Flash Memory
•Audio codec with Mic, Headset Jack
•USB 2.0 HS Host/Device/OTG
•USB 2.0 FS Host/Device/OTG
•CMOS Camera Interface
•SD Card Slot
M467HJHAN extension connectors
Arduino UNO compatible extension connectors
Ammeter connector for measuring the microcontroller’s power consumption
Fixable board power supply
-External VDD power connector
-Arduino UNO compatible extension connector Vin
-FS-USB connector on M467HJ target board
-HS-USB connector on M467HJ target board
-ICE USB connector on Nu-Link2-Me
On-board Nu-Link2-Me debugger and programmer:
-Debug through SWD interface
-On-line /off-line programming
-Virtual COM port function
On-board components
-32 Mbit SPI Flash memory
-64 Mbit HyperRAM-Thermal sensor (Nuvoton NCT7717U)
-User LEDs and user buttons
-10/100M Ethernet transceiver
-FS-USB OTG and HS-USB OTG connectors
-Audio Codec
-Micro SD Card slot
-CAN FD transceiver
