NUC980DR63YC

Introduction

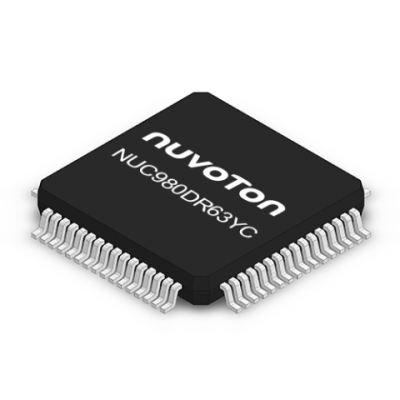

The NUC980DR63YC is part of Nuvoton's NUC980 Industrial control IoT series, which harnesses the power of the ARM926EJ-S core, capable of operating at speeds up to 300 MHz. It is designed to offer a compact design with a 64-pin LQFP package combined with 64 MB DDR-II Memory, which helps minimize PCB footprint and reduce electromagnetic interference (EMI) problems. This platform is aimed primarily for applications such as industrial control and Internet of Things (IoT) connectivity solutions.

Function & Applications

The NUC980DR63YC is equipped with versatile functions suitable for a wide range of applications:
- Industrial Control
- Industrial IoT Gateway
- Ethernet Control
- IoT Control

Performance Parameters

Core performance is characterized by the following specifications:
- CPU: ARM926EJ-S core operating at up to 300 MHz
- Memory: 64 MB built-in DDR-II
- Boot options: Boot from SPI Flash, eMMC Flash, SD Card, or USB Device

Package Types, Interface & Pin Configuration

The NUC980DR63YC comes in a 64-pin LQFP package. Interface details include:
- USB: Up to 2 sets USB 2.0 ports (one USB Host and one USB Host/Device)
- SD Host: 1 Port supporting SD/SDIO/eMMC
- Ethernet: 1 set 10/100 Mbps Ethernet MAC
- Video Input: Support for CCIR656/CCIR601 interface, max resolution up to 3 M pixels

Reliability & Lifespan

This series ensures robust performance suitable for industrial applications, supporting an operating temperature range from -40°C to 85°C, which qualifies it as an industry-grade component. The specifics of reliability and lifespan are subject to the comprehensive testing and quality assurance processes Nuvoton provides but are not detailed in the given specifications.

Standards & Certifications

Nuvoton's products, including the NUC980 series, comply with relevant international standards and certifications required for industrial electronic components. (Note: Exact certifications need to be confirmed with the manufacturer as they are not detailed in the specifications provided.)

Application Cases & Reference Designs

Nuvoton offers several evaluation boards to aid in the development and testing of NUC980-based solutions:
- NuMaker-IIoT-NUC980
- NuMaker-RTU-NUC980
- NuMaker-Server-NUC980

These boards help designers create prototypes and implement the NUC980DR63YC in various applications:

- Networked devices that require a reliable Ethernet connection.
- Control systems within industrial settings that demand rugged and durable components able to withstand extreme temperatures.
- IoT devices that benefit from the integrated cryptographic engine for secure data transactions.

Peripheral support includes SPI, I²C, PWM, UART, and CAN, which offer additional flexibility for interfacing with a wide range of external components. The rich peripheral set and crypto engine integrating AES, SHA, ECC, RSA, and more, all contribute to a robust design fit for secure, connected industrial environments.
