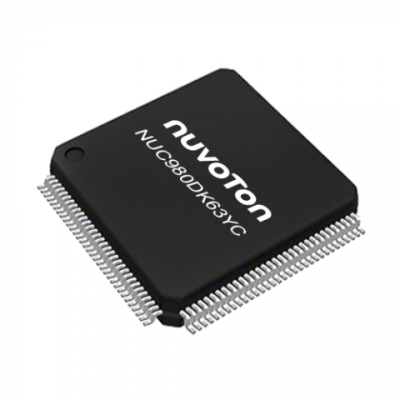

NUC980DK63YC

The NUC980DK63YC series with the ARM926EJ-S core can operate at up to 300 MHz . It offers 128-pin LQFP packages stacked with 64 MB DDR-II Memory to reduce PCB size and EMI issues. Rich peripherals include 10 sets of UART , 2 sets SDIO / eMMC interface, 8 Ports USB Host, NAND Flash interface, QSPI NAND ,4 sets CAN, 2 sets 10 / 100 Mbps Ethernet MAC and High-Speed USB 2.0 host / device controller to allow more flexibility in designs. The NUC980DK61YC also supports industrial temperature from - 40 ℃ to 85 ℃ and targets Ethernet and IoT Control.

Key Features：

• Core
- ARM926EJ-S core
- Operates at up to 300 MHz
- 16 KB I-cache / 16 KB D-cache

• DDR Memory
- Built-in 64 MB DDR II Memory

• USB 2.0 High Speed Host/Device
- Up 2 sets USB ports : one USB Host and one USB Host / Device

• 6 ports USB 1.1 Full Speed Host Lite

• System Boot
- Boot from QSPI NAND, SPI Flash, NAND Flash, eMMC Flash, SD Card or USB Device

• 20-ch Peripheral DMA Controller

• External Bus Interface

• Video Input Interface
- Supports up to 2 Sets CCIR656 / CCIR601 interface
- Max resolution up to 3 M pixels

• SD Host Controller
- 2 Ports SD Host
- Supports SD / SDIO / eMMC

• ADC
- Supports 12-bit 8 channels ADC
- 600 k sps

• Cryptography Accelerator
- ECC-256
- AES-256
- RSA-2048
- SHA-512
- HMAC
- Random number generator

• Peripheral
- Supports SPI / I²C / PWM / UART / CAN
