M058SSAN

Introduction

The NuMicro® M058SSAN is a notable product under the M051 Base Series developed by Nuvoton. It is the advanced industrial-grade semiconductor device embedded with the Cortex-M0 core. With a maximum frequency of 50 MHz, the product offers operational efficiency and high performance across various industry applications.

Function & Applications

The primary function of this product lies in its various applications, notably in Industrial Control, Security/Alarm systems, Temp Sensor, Motors, and Smart Metering Applications. The developed chip is poised to deliver high-end functionalities across these applications given its operational thresholds ranging from 2.5V to 5.5V and -40℃ to 85℃. These wide thresholds offer enough flexibility for varied industrial application requirements and settings.

Performance Parameters

Performance parameters of this product are impressive, with offerings such as a 22.1184 MHz high precision internal oscillator ±1% accuracy at 25℃, 5V, a full range accuracy of ± 3%. In terms of memory, it provides up to 32KB flash memory, 4KB of SRAM, and 4KB of Data Flash. Other key features include an In-System Programming (ISP), In-Circuit Programming (ICP) and In-Application Programming (IAP).

Package Types, Interface & Pin Configuration

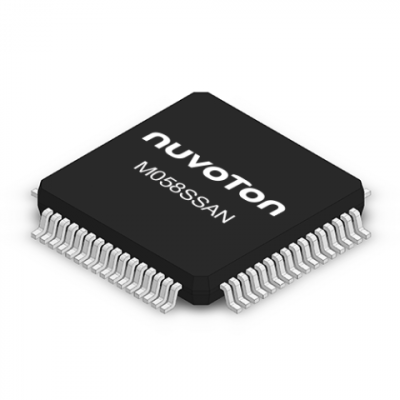

The M058SSAN package is LQFP64 that provides users with a wide range of options depending on their specific needs and requirements. As for the interface, it offers one SPI (up to 36 MHz), 2 I2C (up to 400 kHz), and one UART, facilitating a wide range of peripherals.

Reliability & Lifespan

The M058SSAN offers high reliability and a commendable lifespan. It offers high immunity to electrostatic discharge (8kV ESD) and Electromagnetic field transients (4kV EFT). These factors contribute to its robustness and decent lifespan, making it dependable for long-term industrial use.

Standards & Certifications

As a product by Nuvoton, the M058SSAN adheres to the international semiconductor production and quality assurance standards. It has likely undergone and passed several tests and certifications for operational efficiency, safety parameters, and environmental compatibility.

Application Cases & Reference Designs

Specific application cases of the M058SSAN include security/alarm systems, temperature sensors, and motors where its operational efficiency and capability shine through. While specifics of the reference designs are not provided in the description, these cases demonstrate the device's application versatility and value across different industry settings. Its high-precision oscillator, rich peripherals, and high-immunity features are of particular value in these applications.
