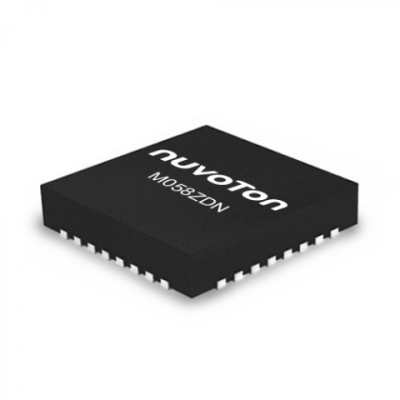

M058ZDN

The M051 operates at 2.5V ~ 5.5V and - 40 ℃ ~ 85 ℃ , and provides 22.1184 MHz high precision internal oscillator ( ± 1 % accuracy at 25 ℃ , 5V; full range ± 3 % ) , rich peripherals and high immunity ( 8 kV ESD, 4 kV EFT ) . Package types include QFN33 and LQFP48.

Target Application:

Security/Alarm, Temperature Sensor, Motor, etc.

Key Features:

•Core

-Cortex™-M0 processor

-Max frequency of 50 MHz

-Operating voltage: 2.5V to 5.5V

-Temperature range: - 40 ℃ ~ 85 ℃


•Memory

-32 KB of flash memory

-4 KB of SRAM

-4 KB of Data Flash

-ISP ( In-System Programming )

-ICP ( In-Circuit Programming )

-IAP ( In-Application Programming )


•ADC

-Up to 5 channels

-12-bit resolution

-Up to 760 kSPS

-A/D conversion started by PWM

-± 1 ℃ accurate Temperature Sensor


•PWM

-Up to five-channel PWM or two complementary paired PWM outputs

-Period/duty trigger ADC function


•Connectivity

-Up to one SPI s ( up to 36 MHz )

-Up to two I²C s ( up to 400 kHz )

-Up to two UART s


•Clock Control

-4 to 24 MHz external crystal oscillator

-22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V )
