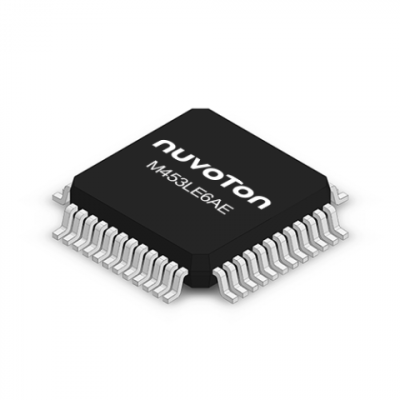

M453LE6AE

Introduction:

The `M453LE6AE` is part of the sophisticated NuMicro® M453 CAN series of 32-bit microcontrollers (MCUs). Developed by Nuvoton, a renowned tech company, this MCU is endowed with the advanced ARM® Cortex®-M4 core, providing high-processing capacity essential for a variety of applications. Its operation range extends from 2.5V up to 5.5V, and it can maintain optimal performance in temperatures spanning -40 ℃ up to 105 ℃.

Function and Applications:

This microcontroller serves as the ideal component for several applications given its function and feature-rich architecture. It is widely used in areas like Industrial Automation, PLCs, Inverters, Home Automation, Portable Data Collector, USB Accessories, Smart Card Reader, and Motor Control. Its array of integrated features including the configurable Data Flash and high immunity (8 kV ESD, 4 kV EFT) makes it an excellent choice across various sectors.

Performance Parameters:

Embedded with 128 KB of Flash Memory, and 32 KB of SRAM, the M453LE6AE provides ample memory space for applications. The 12-bit ADC supports up to 16 channels, whereas the 12-bit DAC and 16-bit PWM offer up to 12 channels. The MCU is also equipped with a CRC engine for added data security.

Package Types, Interface and Pin Configuration:

The product is available in the package types of LQFP48, which provide diversified choices for different application requirements. From a connectivity perspective, the MCU offers up to 4 UARTs, three SPI interfaces, and two I2Cs, supporting data transmission speeds up to 1 MHz. It also comes with smart card and I2S interfaces.

Reliability and Lifespan:

Given the high immunity of the M453LE6AE (8 kV ESD, 4 kV EFT), it is well-designed to withstand harsh operating conditions, thus ensuring its reliability and expanding its lifespan. The inclusion of an internal oscillator (with 1% accuracy at 25 ℃, 5V) and external crystal oscillator further boost the reliability of system operation.

Standards and Certifications:

The MCU's operational compliance and certifications are not explicitly mentioned in the provided information. However, given Nuvoton's reputation as a trusted tech company, it can be assumed that the M453LE6AE is developed and tested under rigorous standards to ensure safety and quality.

Application Cases & Reference Designs:

In the context of specific application cases and reference designs, further information would be needed to provide a detailed overview. However, given the extensive connectivity and advanced features of the M453LE6AE, it can be confidently said that this MCU will be able to support a wide range of advanced, high-performance applications across various sectors.
