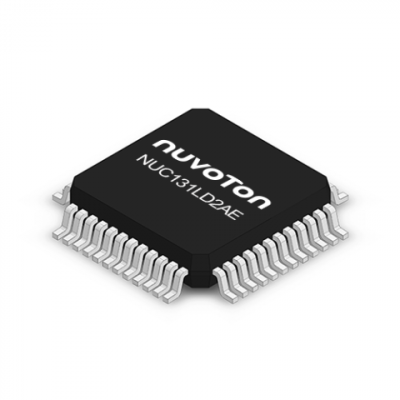

NUC131LD2AE

Introduction

The NUC131LD2AE is part of the notable NUC131 CAN Series developed by the leading semiconductor company, Nuvoton. It is a reliable 32-bit microcontroller with an embedded ARM® Cortex®-M0 core specially designed for industrial control and applications requiring rich communication interfaces.

Function & Applications

Designed with industrial applications in mind, the NUC131LD2AE microcontroller is perfect for industrial controls, communication systems, and elevator controls. Its Cortex®-M0 processor, with a maximum frequency of 50MHz, maintains smooth and efficient operations. The product's extensive connectivity options, including CAN, SPI, I2C, and UART, ensure easy integration into various systems. It also supports In-System Programming (ISP) and In-Circuit Programming (ICP), offering flexibility for design and deployment.

Performance Parameters

Performance parameters define the operation and efficacy of this microcontroller. Aside from the powerful Cortex®-M0 core, running at a maximum frequency of 50MHz, the NUC131LD2AE also offers a broad memory capacity, including 68KB Flash for program memory and 8KB SRAM. The ADC feature with up to 8 channels, 12-bit resolution, and up to 1 MSPS further enhances its functionality. Six UART connections can offer speeds up to 1Mbps, providing ample data transmission options for your projects.

Package Types, Interface & Pin Configuration

This microcontroller comes in a package housing of LQFP 48pin (7x7mm) type, providing a compact solution to space-conscious applications. It supports a wide range of interfaces, which include CAN, SPI, I2C, UART, and PWM. The provider has not specified the pin configuration.

Reliability & Lifespan

While the exact reliability and lifespan are unknown without specific product testing data, products from Nuvoton, including the NUC131 CAN Series, are generally recognized for their robustness and longevity. They are intended for use in rigorous industrial applications and designed for high operational uptime.

Standards & Certifications

The NUC131LD2AE operates under certain standards and certifications set by the semiconductor industry. However, details of these standards and certifications are not provided in the product description.

Application Cases & Reference Designs

Examples of application cases include industrial applications control, communication system, and elevator control, etc. Unfortunately, the specific reference designs are not provided in this referenced data. However, typically Nuvoton provides comprehensive support including development tools and detailed reference designs for their high-quality devices, including the NUC131 CAN Series microcontrollers.
