NUC200LE3AN

Introduction
The NUC200LE3AN is an advanced semiconductor technology microcontroller under the NUC100/200 Advanced Series developed by Nuvoton. This 32-bit microcontroller is embedded with the latest ARM Cortex-M0 core designed for industrial control and applications requiring extensive communication interfaces.

Function & Applications
This microcontroller functions at an exemplary frequency of up to 50 MHz. It is embedded with a rich set of peripherals including Timers, Watchdog Timer, Window Watchdog Timer, RTC, PDMA with CRC calculation unit, UART, SPI, I2C, I2S, PWM Timer, GPIO, PS/2, Smart Card Host, 12-bit ADC, Analog Comparator, Low Voltage Reset Controller, and a Brown-out Detector.
Its widespread application areas include Security/Alarm systems, temperature sensors, and diverse communication systems.

Performance Parameters
The NUC200LE3AN boasts a maximum frequency of 50 MHz while operating at a voltage range of 2.5V to 5.5V under a temperature range of -40℃~85℃. The microcontroller provides a high precision internal oscillator of 22.1184 MHz. It includes up to 128KB of flash memory, 16KB of SRAM, and configurable Data Flash. Moreover, it presents up to 7 ADC channels, offering a 12-bit resolution at a speed up to 760 kSPS.

Package Types, Interface & Pin Configuration

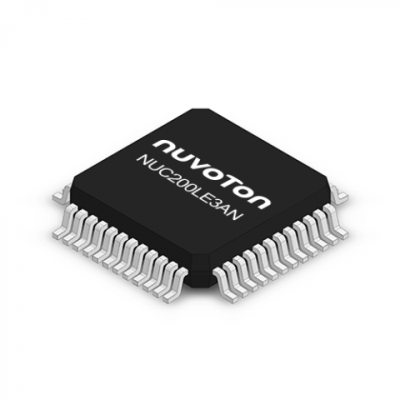

The NUC200LE3AN is available in the package of LQFP48. It provides rich connectivity, with up to 1 SPI, up to 2 I2C, up to 2 UART, and up to 2 ISO-7816-3 interfaces for security applications. The pin configuration is designed to ensure flexibility and diverse functionality.

Reliability & Lifespan
The NUC200LE3AN proves to be highly reliable as it offers high immunity with an 8 kV ESD and 4 kV EFT. Its robustness is further underpinned by its extensive operating parameters for temperature and voltage.

Standards & Certifications
As a quality-centered product, the NUC200LE3AN assumes compliance with all pertinent industry standards and certifications. Though the specific certifications are not expressly stated in the description, semiconductor products typically adhere to ISO standards among others, ensuring operational and safety compliance.

Application Cases & Reference Designs
In terms of application cases and reference designs, the NUC200LE3AN is ideal for applications such as Security/Alarm systems, Temperature sensors, and Communication systems - all of which require robust, reliable, and efficient microcontrollers. The exact reference designs would be determined by the specific application requirements in each case.
