MINI58FDE

Introduction
The Nuvoton MINI58FDE is a member of the Mini51 Base Series microcontrollers which integrate an ARM® Cortex®-M0 core for high-performance processing. This series is designed for a variety of applications, ranging from consumer electronics to industrial controls and communication systems.

Function & Applications
The MINI58FDE microcontroller is capable of serving as the computational heart of numerous electronic products due to its versatile functionalities and characteristics. Its applications extend across sectors such as wireless charging, home appliances, security and alarm systems, temperature sensors, motor control, and industrial control systems.

Performance Parameters
The microcontroller operates at a frequency of up to 50 MHz, providing swift computational capabilities. It functions at an operating voltage range from 2.5V to 5.5V, accommodating a wide array of power supplies, and can withstand temperature variations from -40°C to 105°C. The device includes a memory architecture of 32 KB flash for program storage and 4 KB SRAM, facilitating efficient data handling and storage solutions. Other features equipped within the MINI58FDE include a 10-bit SAR ADC supporting 250 kSPS, six-channel PWM, and multiple communication interfaces such as SPI, I2C, and UART.

Package Types, Interface & Pin Configuration

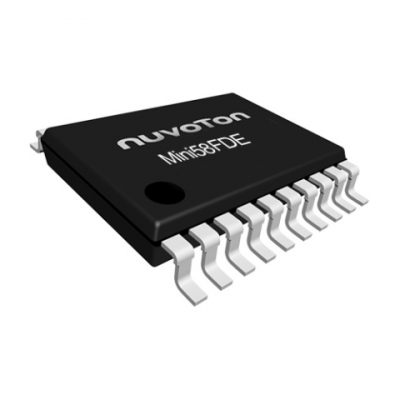

Complementing the robust performance are the package variants the MINI58FDE offers‚TSSOP20 which is flexibility in design and assembly. Various interfaces like SPI, I²C, UART, along with a versatile pin configuration, facilitate seamless integration into a multitude of electronic assemblies and products.

Reliability & Lifespan
The Mini51 series boasts strong immunity figures, withstanding up to 8 kV in ESD and 4 kV EFT, demonstrating the MINI58FDE's robustness and reliability in challenging electrical environments. The device's operating ranges and built-in protection systems contribute to a reliable operational lifespan, ensuring consistent performance over time.

Standards & Certifications
Nuvoton's commitment to industry standards and quality certifications can be inferred from the device's operational reliability and robustness. However, specific standards and certifications were not detailed in the given text and may need to be sought directly from Nuvoton or the appropriate product datasheets.

Application Cases & Reference Designs
The diverse application potential of the MINI58FDE spans from consumer applications such as wireless charging solutions to complex industrial control systems. Each industry leveraging the MINI58FDE benefits from its computational power and peripheral integration, ensuring that applications are both sophisticated and reliable. While reference designs were not provided in the provided specification text, they are often available from manufacturers to aid in the development process.

In essence, the Nuvoton MINI58FDE is a high-performing, versatile microcontroller with a wide operating range, capable of driving a multitude of electronic applications in varying environmental conditions. Its package options, combined with high ESD and EFT immunity, make it a suitable choice for developers looking to design products with longevity and reliability at their core.
