M032KIAAE

Introduction

The Nuvoton NuMicro M032KIAAE microcontroller is an advanced semiconductor device from the M032 Series that has been engineered to offer a robust processing unit for a myriad of applications. This 32-bit microcontroller, which leverages the efficient Arm® Cortex®-M0 core, can operate at frequencies up to 72 MHz, delivering powerful performance with efficient power consumption.

Function & Applications

Specially designed to cater to crystal-less USB applications, the M032KIAAE MCU encompasses abundant features making it an ideal candidate for use in gaming, LED controllers, microprinters, display panels, and a range of home appliances. It supports a wide array of interfaces, including UART, SPI, I²C, and USB, which expands its usability across different applications that require fast and precise data transfer or control.

Performance Parameters

At the heart of the M032KIAAE's performance are its core characteristics and memory capabilities. Its integrated 512 KB Flash and 96 KB SRAM provide ample space for complex programs and data. The microcontroller's clock system includes a crystal oscillator and an internal oscillator that ensures reliable performance across varying environmental conditions. Moreover, its analog features, such as the 2 MSPS ADC and comparators, facilitate swift data conversion, which is critical for sensor-based applications.

Package Types, Interface & Pin Configuration

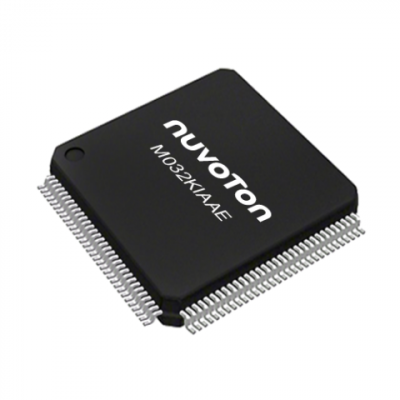

The M032KIAAE comes in a 128-pin LQFP package, a compact form factor of 14 x 14 mm, suitable for space-constrained applications. The chip's interface options are extensive, with multiple sets of UART, I²C, and SPI interfaces, including an advanced USB 2.0 full-speed interface with on-chip PHY. It offers a large number of GPIO pins (up to 107, excluding analog pins) that are 5V tolerant, providing ample flexibility for various peripheral connections.

Reliability & Lifespan

Nuvoton's M032KIAAE MCU is built with a robust design that can tolerate a wide temperature range from -40 ℃ to 105 ℃, ensuring a reliable operation under harsh conditions. The microcontroller's EFT and ESD protection features add layers of safety against electrical transients, which contributes to the product's longevity and stable performance throughout its lifecycle.

Standards & Certifications

The device aligns with industry safety specifications such as IEC60730, which underscores its suitability for use in home appliances. These standards and certifications are a testament to the MCU's quality and reliability in various environments and use cases.

Application Cases & Reference Designs

The M032KIAAE's robust, feature-rich design extends its usability across diverse industries. Its application in gaming devices caters to the need for high-speed data processing and communication, while its precise ADC is perfect for sensor-driven IoT devices. For consumer electronics like microprinters and displays, its flexible communication interfaces ensure smooth data throughput. Furthermore, Nuvoton's support in terms of evaluation boards and development tools like the NuMaker and Nu-Link debugger accelerate the prototyping and production phases, assisted by comprehensive documentation and sample code.

In summary, the M032KIAAE MCU is a powerful, versatile microcontroller that combines high performance with a breadth of interfaces, making it an exceptional choice for developers focused on building sophisticated electronic devices across consumer and industrial applications.
