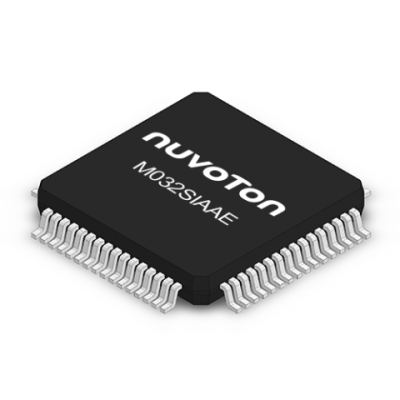

M032SIAAE

Introduction

Nuvoton, a notable name in the manufacturing of semiconductor chips, boasts the proud creation of M032 series under the part number M032SIAAE. This is a 32-bit microcontroller based on cutting-edge Arm® Cortex®-M0 CPU, equipped with a dedicated 32-bit hardware multiplier/divider. These facilitates a striking operating voltage range from 1.8V to 3.6V and a 5V I/O tolerant feature. Built to sustain harsh conditions, this microcontroller operates seamlessly within a temperature range of - 40 to 105 ℃, even at an impeccable speed of up to 48/72 MHz.

Function & Applications

M032SIAAE is best suited for Crystal-less USB applications requiring a 1.8V low-voltage interface. Efficiency is boosted by a quick 2 MSPS conversion rate, a 12-bit ADC, compatibility for up to 10 sets of UART, and 4 sets each of SPI and I2C. Moreover, the M032 series provides a comprehensive solution for voltage, current, and sensor data conversion. It allows swift control responses to external devices. M032SIAAE finds extensive use in the control of mobile LCD panels, IoT sensing devices, micro printers, gaming keyboards, mouse, and TWS chargers.

Performance parameters

Operating at a remarkable speed of up to 72 MHz, M032SIAAE flaunts a 32-bit hardware multiplier/divider. It also offers large storage capacities, with flash size options ranging from 32 KB to 512 KB and SRAM size varying from 4 KB to a massive 96 KB. This microcontroller presents a host of effective communicative interfaces, including UART, SPI, and I2C. It also comes with an integrated power-on reset feature, brown-out detect, and low voltage reset functionalities. This arm-core based unit also supports the user-friendly Keil MDK, IAR EWARM, Eclippse IDE with GNU GCC compilers, and so forth for the ease of development process.

Package Types, Interface & Pin Configuration

For user convenience, the M032 series' package sizes differ from small form factor LQFP 64. Each variant is pin-compatible for simple part number substitutions and easy design changes.

Reliability & Lifespan

The robust attributes incorporated within M032SIAAE such as brown-out detect, power-on reset, and low voltage reset bolster the device's reliability. Moreover, under varying voltage and temperature conditions, its efficiency remains unaffected. This testifies to the longevity promised by M032SIAAE.

Standards & Certifications

In adherence to global standards, M032SIAAE abides by IEC60730 safety specifications. Besides offering elevated performance, this microcontroller is also ESD HBM 6kV and EFT 4.4kV certified.

Application Cases & Reference Designs

To enhance user experience and facilitate facile interpretability, the M032 series also presents the NuMaker evaluation boards and Nuvoton Nu-Link debugger. M032SIAAE is also perfect for gaming applications owing to its fast response control and data conversion capabilities. Other practical case applications include LED controllers, microprinters, display panels, and home appliances.
