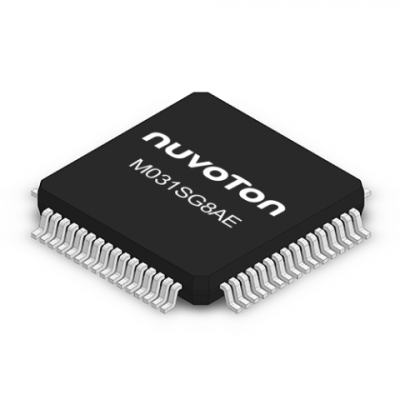

M031SG8AE

Nuvoton NuMicro M031SG8AE is low-voltage operation MCU based on Arm® Cortex®-M0 core with 32-bit hardware multiplier/divider. Operating frequency up to 72 MHz with 1.8V ~ 3.6V operating voltage, equipped 256 KB Flash and 64 KB SRAM .⠀
⠀
With its special designed performance such as 2 MSPS ADC , 144 MHz PWM , 24 MHz SPI , 12 MHz UART . It can be applied at industrial control and consumer applications, provide a fast and precise data conversion of the voltage, current and sensor data, and fast response control for the external device, such as the current/voltage feedback from motor control or sensing devices.⠀
⠀
M031SG8AE also provides plenty of peripherals included up to 2 set Universal Serial Control Interface ( USCI ) , 6 set UART , 1 set Q SPI , 1 set SPI /I²S, 2 set I²C , 16-ch 12-bit ADC , 24-ch 16-bit PWM etc. for various application demand. And it can operate over a wide temperature range as - 40 ℃ ~ + 105 ℃ . Pin to Pin is compatible in same package for full series.⠀
⠀
Target Application:⠀
⠀
Laser Distance Meter⠀
Air Detector/Cleaner⠀
Mobile LCD Panel Controller⠀
Micro Printer⠀
Gaming Lighting⠀
⠀
⠀
Key Features:⠀
⠀
• Operating Characteristics⠀
- Voltage range: 1.8 V to 3.6 V⠀
- Temperature range: - 40 ℃ to +105 ℃⠀
- EFT 4.4 kV⠀
- ESD HBM 6 kV⠀
⠀
• Core⠀
- Arm® Cortex®-M0 processor running up to 72 MHz⠀
- 32-bit H/W multiplier/divider⠀
⠀
• Memories⠀
- 256 KB Flash⠀
- 64 KB SRAM⠀
- 4 KB Flash for user program loader ( LDROM )⠀
- ISP / ICP / IAP programming⠀
- 2048 bytes SPROM ( Security Protection ROM )⠀
⠀
• Clocks⠀
- 4 to 32 MHz HXT crystal oscillator or external input clock⠀
- 32.768 kHz LXT crystal oscillator or external input clock for low-power system operation⠀
- Internal 48 MHz HIRC oscillator with variation ± 2 % within all temperature range⠀
- Internal 38.4 kHz LIRC for Low-power operating mode⠀
- One PLL up to 144 MHz for high speed module operation⠀
⠀
• Timers⠀
- Up to 4 32-bit timers⠀
- One 24-bit SysTick timer⠀
⠀
• PWM⠀
- 24 channels 144 MHz 16-bit PWM⠀
⠀
• Analog⠀
- 16 channels 12-bit 2 MSPS ADC⠀
- Two rail-to-rail comparators ( ACMP )⠀
⠀
• PDMA⠀
- 7 channels PDMA⠀
⠀
• CRC⠀
- CRC-CCITT, CRC-8, CRC-16 and CRC-32 polynomials⠀
⠀
• Communication interfaces⠀
- ⠀
2-set of USCI interfaces that supports UART , SPI and I²C mode⠀
⠀
- 6-set of 12 MHz UART interfaces⠀
- 1-set of Q SPI interface⠀
- 1-set of 24 MHz SPI /I²S interface⠀
- 2-set of 1 MHz I²C interface⠀
- External Bus Interface ( EBI ) , supports 8-/16-bit data with maximum external address space of 1 MBytes⠀
- 55 GPIO ( except analog pins, Support 5V tolerant I/O )⠀
⠀
• 96-bit Unique ID ( UID )⠀
⠀
• 128-bit Unique Customer ID ( UCID )⠀
⠀
• Package⠀
- LQFP64 7 x 7 mm⠀
⠀
⠀
⠀
