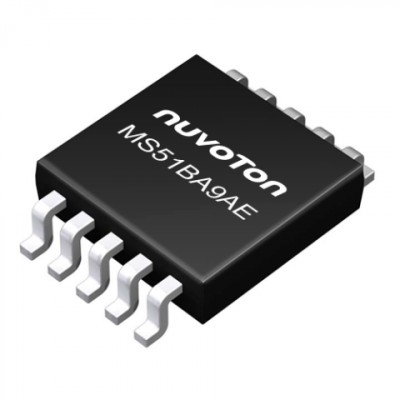

MS51BA9AE
8051 MCU
Supplier:
Nuvoton
Certification:
Specification
Attribute Value
Product Series
Industrial MS51 Series
Core Processor
8051
Frequency
24MHz
PWM
4*16-bit
Number of I/O
8
Operating Voltage
2.4~5.5V
Memory Size
8KB
Operating Temperature
-40~+105˚C
SRAM
1KB
ADC
4
UART
2
Package
MSOP10
Description
NuMicro® MS51BA9AE is embedded with based on 1T 8051-based CMOS microcontroller, runs up to 24 MHz, features 8 K bytes flash, 1 K bytes SRAM, and 4 K bytes loader ROM for the ISP, also equipped with rich peripherals: 2 sets of UART; 1 set of I²C, and 1 set of SPI, 8 GPIO, 4 channels of 12-bit ADC, Watchdog Timer, Window Watchdog Timer and 6*16-bit PWM channel, package is available in MSOP10.
Target Application:
LED lighting
Home appliances
Industrial control
Motor control
Battery management system
Power supplies
Key Features:
Technical Documentation
Datasheet
