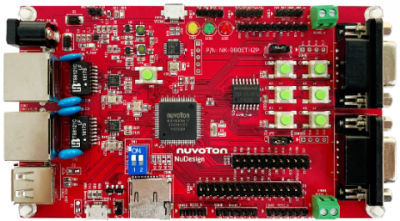

NuMaker-Server-NUC980

Linux Industrial IoT Development Platform

Nuvoton provides industrial network control development platform using NUC980DK microprocessor, which is a set of industrial network control development platform, complete hardware design, and software reference design. It includes the new ARM9 MPU with core speed up to 300 MHz and built-in 64 MB DDR memory, two 10 / 100 Ethernet ports, two high-speed USB hosts, 1Gb SPI NAND Flash storage device, two RS-485 interfaces, and eight UARTs. The platform provides Linux OS and plenty of industrial control protocol for users to implement the Ethernet control applications in a very short time.

Development platform Features

・32-bit ARM926EJ-STM NUC980DK Microprocessor
・Microprocessor built-in 64MB DDR memory
・Operating frequencies up to 300 MHz
・1Gb SPI NAND Flash
・10/100 Ethernet x2
・USB 2.0 High-Speed Host x1
・USB 2.0 High-Speed Host / Device x1
・RS-485 x 2
・UART x 8
・MicroSD card slot
・USB Power and CDC Debug Port
・External memory expansion interface
