NuMaker-PFM-M2351

The NuMaker-PFM-M2351 is a development board based on NuMicro®-M2351 microcontroller. Nuvoton NuMicro® M2351 secure microcontroller series is empowered by Arm® Cortex®-M23 core with TrustZone® for Armv8-M architecture, which elevates the traditional firmware security to the new level of robust software security. With M2351 series, designers can easily expand the coverage of protection from application level to TrustZone level.

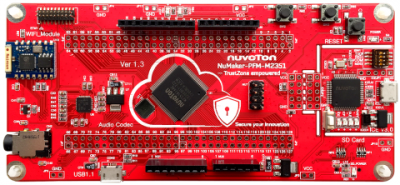

With the NuMaker-PFM-M2351 board, users can easily develop the secure application project. The right part of this board is the M2351 platform, including the target chip M2351KIAAE and the related onboard application parts and connectors.

The left part of this board is a Nu-Link-Me ICE Bridge based on the SWD (Serial Wire Debug) interface connected with the target chip, allowing users to program the application code to the Flash of target chip through the USB port from PC Host.

• On-board Nu-Link-Me ICE Bridge (Mass storage as USB Disk drive) for drag and drop programming
• Arduino UNO compatible interface
• M2351 extended interface connectors
• Secure Serial Flash(W77F32W) for secure data storage, cryptographic key storage, and general data storage
• Audio codec (NAU88L25) with Microphone In and Headphone Out
• Wi-Fi module for wireless application
• USB 2.0 Full-Speed OTG / Host / Device
• MicroSD Card slot for T-Flash
• Three push-buttons: one is for reset and the other two are for user-defined
• Three LEDs: one is for power indication and the other two are for user-defined

Reference : NK-BEDM2351
