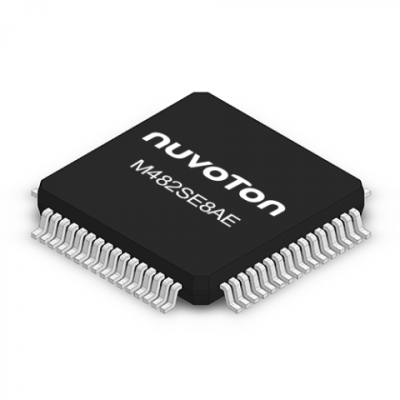

M482SE8AE

The NuMicro® M482 USB FS OTG series is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. Running up to 192 MHz with 130 µA/ MHz dynamic power consumption provides excellent energy efficiency. The 128 KB embedded Flash memory supports up to 4 configurable eXecute-Only-Memory regions, and the 64 KB embedded SRAM provides multi-level retention in standby power-down mode. The factory pre-loaded bootloader delivers Secure Boot functionality to check code integrity inside embedded Flash memory. One-Time Programmable ROM is also included for product life-cycle management.

The NuMicro® M482 USB OTG series supports operating voltage from 1.8V to 3.6V , and industrial operating temperature from - 40 ℃ to 105 ℃ . It is integrated with camera interface, 12-bit 5 MSPS ADC , USB full speed OTG with the crystal-less feature in device mode, and up to eight sets of high-speed UART interface. Package type includes QFN33, LQFP48, LQFP64, and LQFP128.

Target Application:Gaming Accessories, PC Accessories, etc.

Key Features:

• Core
- Up to 192 MHz ARM® Cortex®-M4F delivering 1.25 DMIPS per MHz
- DSP instruction set
- Memory Protection Unit ( MPU )

• Memory
- 128 KB zero-wait state flash supports eXecute-Only-Memory ( XOM )
- 64 KB RAM ( with 32 KB hardware parity check )
- 2 KB OTP for general purpose

• Cyclic Redundancy Calculation Unit

• 16-ch Peripheral DMA Controller

• External Bus Interface
- LCD parallel interface, i80 mode

• Clocks
- 4 to 24 MHz crystal oscillator
- 32 kHz oscillator for RTC ( variation < ± 0.25 % )
- Internal 48 MHz RC oscillator ( X-less )
- Internal 12 MHz RC oscillator ( variation < ± 2 % )
- Internal 10 kHz RC with calibration

• RTC
- Independent VBAT power pin
- 20 bytes of battery-powered backup registers

• Timer & PWM
- Four 32-bit timers
- Twelve Enhanced PWM with twelve 16-bit timers
- Twelve Basic PWM with two 16-bit timers
- One 24-bit count-down SysTick timer
- One watchdog timer
- One window watchdog timer
• Analog
- One 12-bit, 5 MSPS SAR ADC ( up to 16 channels ) with 0 to analog supply conversion range
- One 12-bit, 1 MSPS DAC
- Two rail-to-rail comparators

• Communication Interfaces
- Up to 8 low power UART interfaces ( 17 Mbps ) , including 2 LIN interfaces
- Up to 1 ISO-7816 interface ( 3.4 MHz ) , supporting full duplex UART mode
- Three I²C interfaces ( Up to 3.4 Mbps )
- Two Quad- SPI interfaces ( Up to 96 MHz )
- Up to 3 SPI / I²S interfaces ( SPI up to 96 MHz , I²S up to 192 kHz/16-bit )
- One I²S interface ( 192 kHz/32-bit )
- One Secure Digital Host Controllers ( 50 MHz )

• Control Interfaces
- Two quadrature encoder interfaces ( QEI )
- Two 24-bit, 3-ch input capture timer/counter units

• Camera interface
- CMOS Sensor interface with hardware 1-bit luminance output

• Advanced connectivity
- USB 2.0 full speed OTG controller with on-chip PHY

• Operating Characteristics
- Voltage range: 1.8V to 3.6 V
- Temperature range: - 40 ℃ to +105 ℃

• IEC-60730 Class B compliance

• Cryptography Accelerator
- AES-256
- True random number generator
