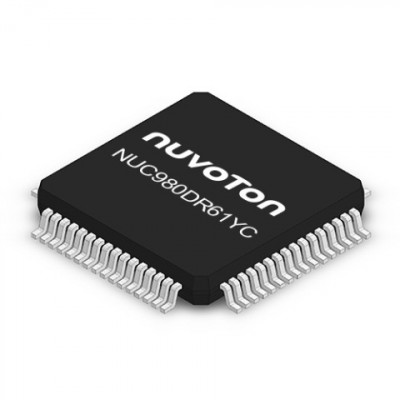

NUC980DR61YC

Introduction:
The NUC980DR61YC, a part of Nuvoton‚NUC980 Industrial Control IoT series, is a powerful semiconductor device, designed to facilitate a wide range of applications. Equipped with a high-performance ARM926EJ-S core, which can run up to 300 MHz, it is a robust choice for demanding technology needs.

Function & Applications:
This product is commendable for its ease of integration into systems operating within an industrial temperature range from -40°C to 85°C. This wide range makes it suitable for Industrial Control, Industrial IoT Gateway, Network Printer, Meter Concentrator and Smart Home Gateway applications. It also features additional functionalities, like Crypto Accelerator, abundant connectivity interfaces and differing memory options.

Performance Parameters:
The NUC980DR61YC offers excellent performance parameters. It has rich set of peripherals includes up to 2 sets of USB 2.0 HS Host/Device, supporting SD Card/SDIO, 10/100 Ethernet MAC, up to 4 sets CAN Bus and up to 10 sets UART/RS485. The NUC980 also offers the functionality to boot from SPI Flash, eMMC Flash, SD Card or USB Device.

Package Types, Interface & Pin Configuration:
The device offers 64-pin LQFP packages stacked with 64 MB DDR-II Memory, designed to reduce PCB size and EMI issues. It also comes equipped with multiple interfaces, including SPI, I²C, PWM, UART, CAN, to accommodate a wide range of needs.

Reliability & Lifespan:
The NUC980DR61YC has been engineered to withstand demanding industrial environments with an operating temperature range of -40°C to 85°C. Its reliable performance, backed with quality components, ensures a long-lasting lifespan even in extreme conditions.

Standards & Certifications:
The NUC980DR61YC abides by the rigorous standards laid out by the semiconductor industry, ensuring the high quality and reliability of the device. While information on specific certifications is not provided, Nuvoton is renowned for its commitment to compliance with safety and regulation standards.

Application Cases & Reference Designs:
Detailed application cases and reference designs for the NUC980DR61YC can be found through Nuvoton's Evaluation Boards, these include NuMaker-IIoT-NUC980, NuMaker-RTU-NUC980, and NuMaker-Server-NUC980, which offer a wide range of design and application possibilities for this versatile semiconductor device.
