NuMaker-M2351SF

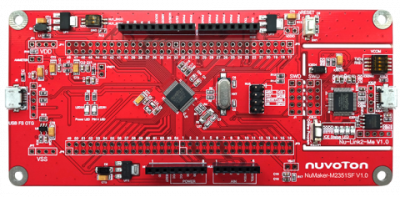

The NuMaker-M2351SF consists of two parts, a M2351SF platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M2351SF allows users to quickly develop and easily program and debug application.

The NuMaker-M2351SF offers M2351SFSIAAP full pins extension connectors, Arduino UNO compatible extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-M2351SF also provides an ammeter connector, allows user to monitor the microcontroller’s power consumption during development.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line programming the target microcontroller. Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-M2351SF, allowing user to use as a mass production programming tool.

•NuMicro® M2351SFSIAAP used as main microcontroller
•M2351SFSIAAP full pins extension connectors
•Arduino UNO compatible extension connectors
•Ammeter connector for measuring the microcontroller’s power consumption
•Fixable board power supply
-External VDD power connector
-Arduino UNO compatible extension connector Vin
-USB power connector on M2351SF Platform
-ICE USB connector on Nu-Link2-Me
•On-board Nu-Link2-Me debugger and programmer:
-Debug through SWD interface
-On-line /off-line programming
-Virtual COM port function
